SKU:
ALP 9022032
€ 10.999,35
1-2 weeks delivery time
-
+
The Solé Mini 33 is a robust 3-cylinder diesel engine designed for inboard marine use, equipped with a Technodrive TMC60P gearbox at a 2.00:1 reduction ratio, producing 32 hp and approved for Lake Constance, with fresh water cooling and a weight of 176 kg including saildrive.
- Description
- Ask a Question
-
Solé Marine Diesel Engine Mini 33 With Technodrive Gear Box TMC60P, R=2.00:1
The Solé Mini 33 is a robust 3-cylinder diesel engine built for marine inboard applications. It features a Technodrive TMC60P gearbox with a 2.00:1 reduction ratio and offers reliable power output for sailing and cruising vessels.
- Article number: 9022032
- EAN number: 8719182077459
- Engine type: Diesel, 4-stroke
- No. of cylinders: 3 in line
- Bore x stroke: 78x92mm
- Total displacement: 1,318cc
- Compression ratio: 22:1

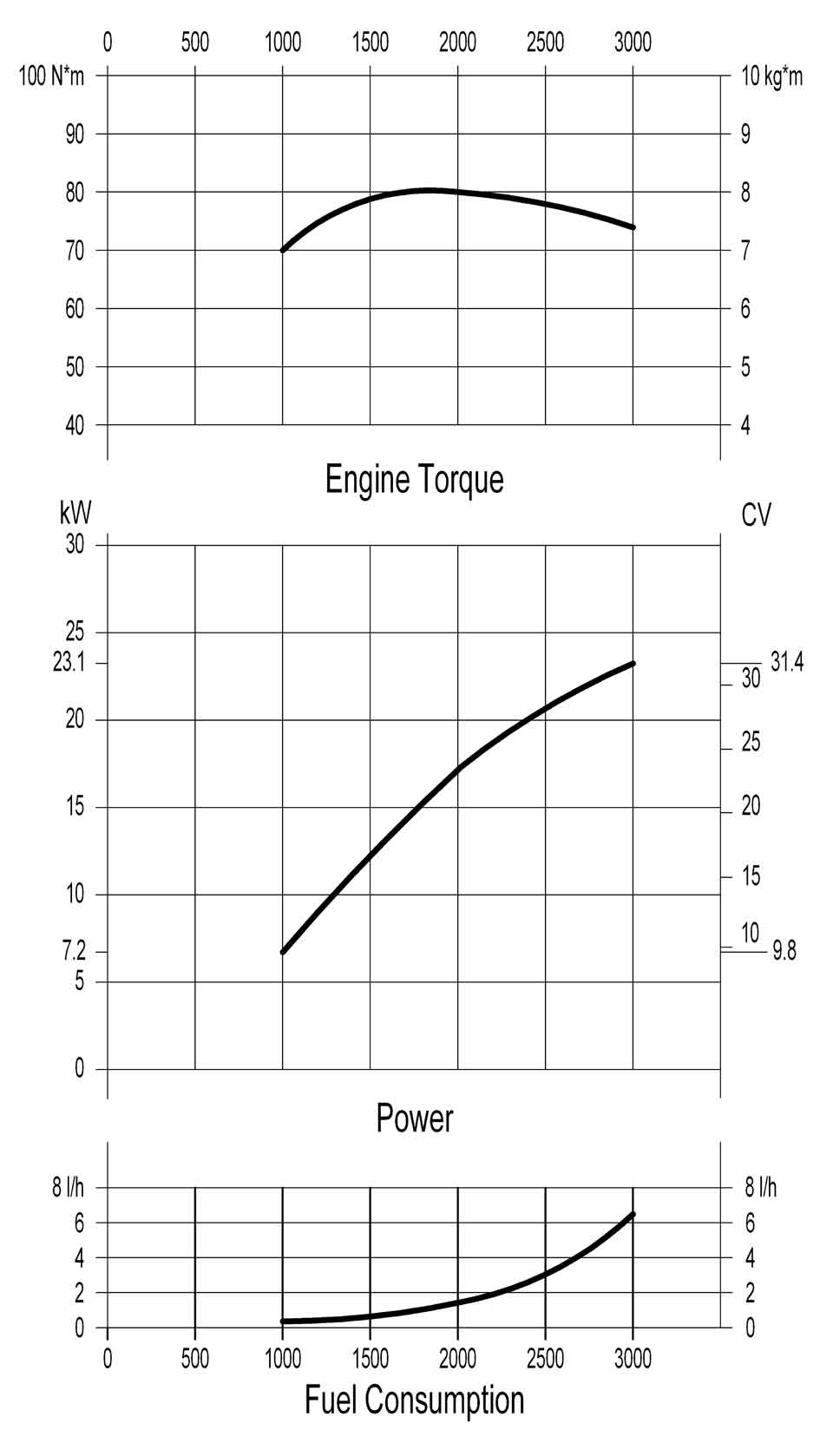

- Max. output (DIN6270B): 32hp / 23.5kW
- Max. speed: 3,000 rpm
- Max. torque: 82Nm at 1,800 rpm
- Combustion system: Indirect mechanical injection
- Cooling system: Fresh water with heat exchanger
- Electrical system: 12V starter motor (1.7kW), Alternator 95A
- Weight: 155kg
- Weight with Saildrive: 176kg (including Saildrive)
- Max. installation angle: 12° (+3° discontinuous)
- Exhaust: Ø50mm
- Sea-water intake: Ø20mm
- Fuel intake: Ø6mm
- Fuel return: Ø5mm
- Gearbox and reduction: Technodrive TMC60P, R=2.00:1
- Lake Constance Approval: Yes
-
