SKU:
ALP 9022165
€ 16.680,26
1-2 weeks delivery time
-
+
The Solé Mini 33/SD combines a 3-cylinder diesel engine with the Technodrive Seaprop Saildrive system at a 2.15:1 reduction ratio, delivering 32 hp with smooth power transmission, fresh water cooling, and Lake Constance approval, weighing 176 kg including saildrive.
- Description
- Ask a Question
-
Solé Marine Diesel Engine Mini 33/SD With Technodrive Seaprop Saildrive, R=2.15:1
The Solé Mini 33/SD combines a 3-cylinder diesel engine with the Technodrive Seaprop Saildrive system, delivering smooth power transmission with a reduction ratio of 2.15:1. This model is well-suited for marine use and holds Lake Constance approval.
- Article number: 9022165
- EAN number: 8719182077459
- Engine type: Diesel, 4-stroke
- No. of cylinders: 3 in line
- Bore x stroke: 78x92mm
- Total displacement: 1,318cc
- Compression ratio: 22:1

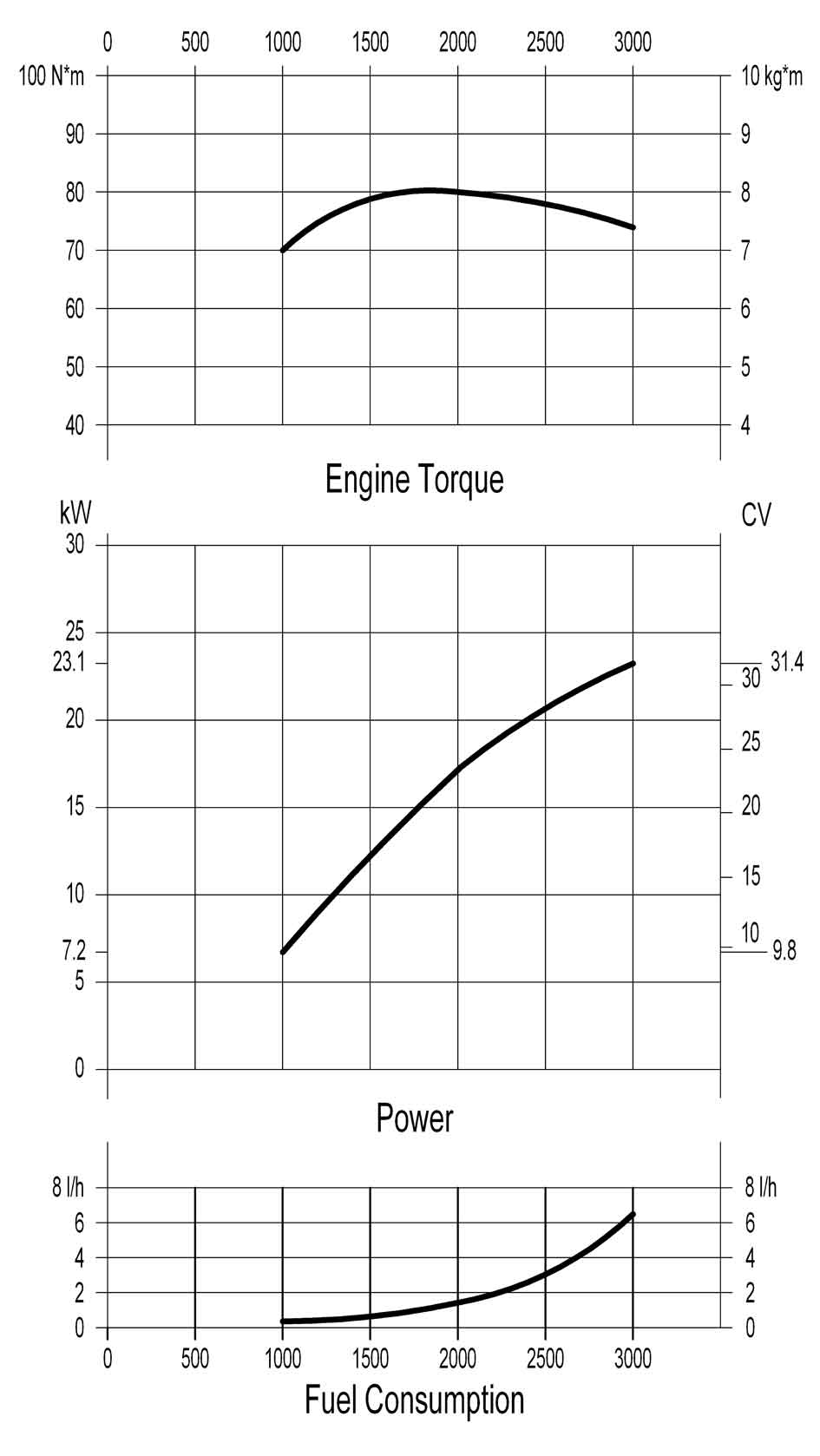

- Max. output (DIN6270B): 32hp / 23.5kW
- Max. speed: 3,000 rpm
- Max. torque: 82Nm at 1,800 rpm
- Combustion system: Indirect mechanical injection
- Cooling system: Fresh water with heat exchanger
- Electrical system: 12V starter motor (1.7kW), Alternator 95A
- Weight: 155kg
- Weight with Saildrive: 176kg (including Saildrive)
- Max. installation angle: 12° (+3° discontinuous)
- Exhaust: Ø50mm
- Sea-water intake: Ø20mm
- Fuel intake: Ø6mm
- Fuel return: Ø5mm
- Gearbox and reduction: Technodrive Sea Prop Saildrive & base, R=2.15:1
- Lake Constance Approval: Yes
-
