SKU:
ALP 9022026
€ 12.004,36
1-2 weeks delivery time
-
+
The Solé Marine Diesel Engine Mini 29 with Technodrive Gear Box TMC40L (R=2.60:1) features the same powerful three-cylinder engine as the 2.00:1 variant but optimized with a 2.60:1 reduction ratio for enhanced thrust at lower speeds in marine environments.
- Description
- Ask a Question
-
Solé Marine Diesel Engine Mini 29 With Technodrive Gear Box TMC40L, R=2.60:1
Engineered for enhanced thrust at lower speeds, this variant of the Mini 29 features a 2.60:1 reduction ratio gearbox, maintaining the same robust performance specs with optimized gearing for specific marine needs.
- Article number: 9022026
- EAN number: 8719182076674
- Type: Diesel, 4-stroke
- No. of cylinders: 3 in line
- Bore x stroke: 76x70mm
- Total displacement: 952cc
- Compression ratio: 22:1

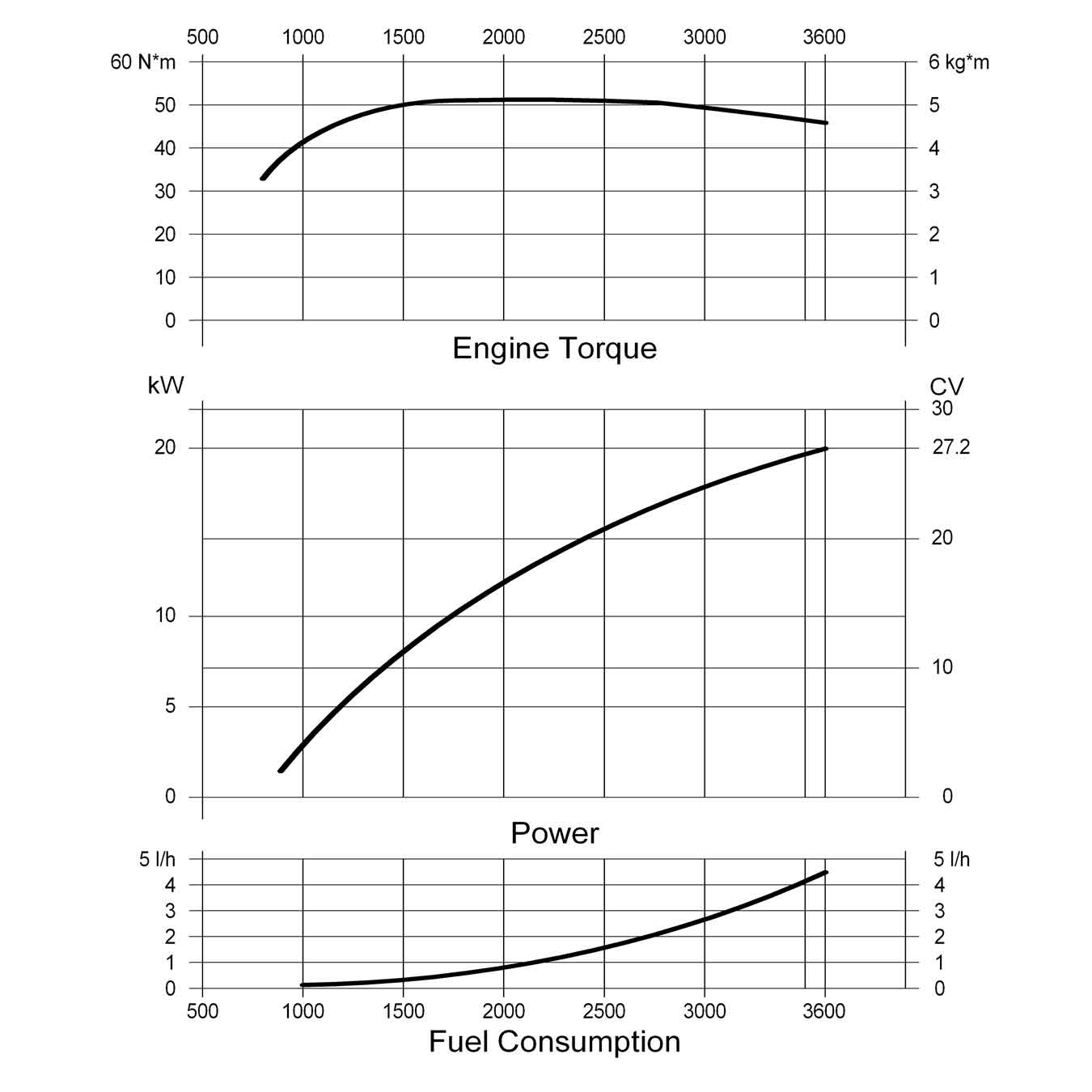

- Max. output: DIN6270B 27.2hp / 20kW
- Max. speed: 3,600 rpm
- Max. torque: 52Nm at 1,800 rpm
- Combustion system: Indirect mechanical injection
- Cooling system: Fresh water using heat exchanger
- Electrical system: 12V starter motor, 1.2kW, Alternator 75A
- Weight: 105kg
- Weight with Saildrive: 134kg (incl. polyester base)
- Max. installation angle: 22° (+3° discontinuous)
- Exhaust: Ø50mm
- Sea-water intake: Ø20mm
- Fuel intake: Ø6mm
- Fuel return: Ø5mm
- Gearbox and Reduction: Technodrive TMC40, R=2.60:1
- Lake Constance Approval: Yes
-
