SKU:
ALP 9022065
€ 15.945,71
1-2 weeks delivery time
-
+
The Solé Mini 29/SD is a compact 3-cylinder marine diesel engine featuring a Technodrive Seaprop Saildrive system with a reduction ratio of 2.15:1, approved for use on Lake Constance, delivering 27.2 hp with efficient fresh water cooling and weighing 134 kg including the saildrive.
- Description
- Ask a Question
-
Solé Marine Diesel Engine Mini 29/SD With Technodrive Seaprop Saildrive, R=2.15:1
The Solé Mini 29/SD is a compact, efficient 3-cylinder marine diesel engine designed for sailboats. This model includes a Technodrive Seaprop Saildrive system, providing a reduction ratio of 2.15:1, and comes approved for use on Lake Constance.
- Article number: 9022065
- EAN number: 8719182076674
- Engine type: Diesel, 4-stroke
- No. of cylinders: 3 in line
- Bore x stroke: 76x70mm
- Total displacement: 952cc
- Compression ratio: 22:1
- Max. output (DIN6270B): 27.2hp / 20kW
- Max. speed: 3,600 rpm

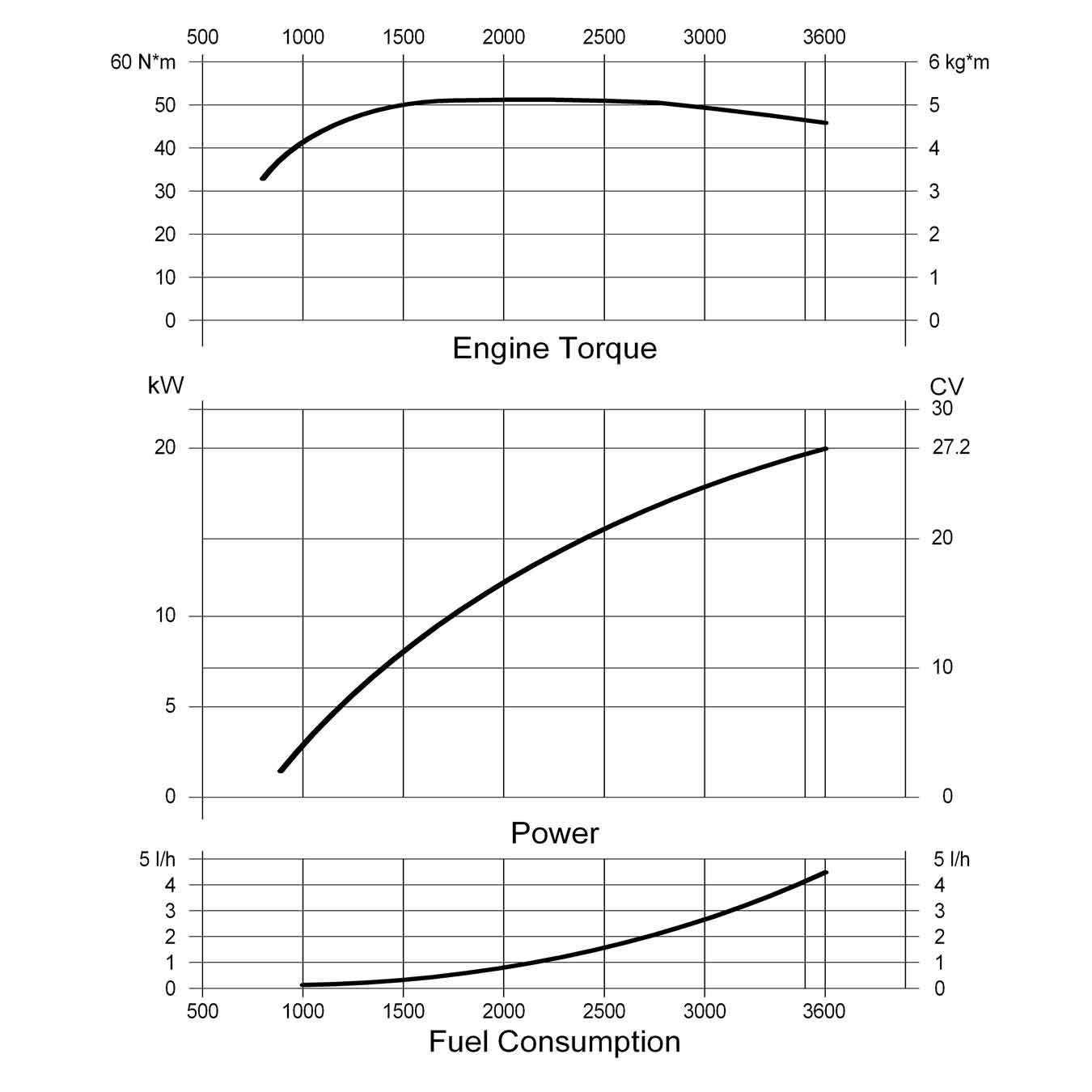

- Max. torque: 52Nm at 1,800 rpm
- Combustion system: Indirect mechanical injection
- Cooling system: Fresh water with heat exchanger
- Electrical system: 12V starter motor (1.2kW), Alternator 75A
- Weight: 105kg
- Weight with Saildrive: 134kg (including polyester base)
- Max. installation angle: 22° (+3° discontinuous)
- Exhaust: Ø50mm
- Sea-water intake: Ø20mm
- Fuel intake: Ø6mm
- Fuel return: Ø5mm
- Gearbox and reduction: Technodrive Sea Prop Saildrive & base, R=2.15:1
- Lake Constance Approval: Yes
-
