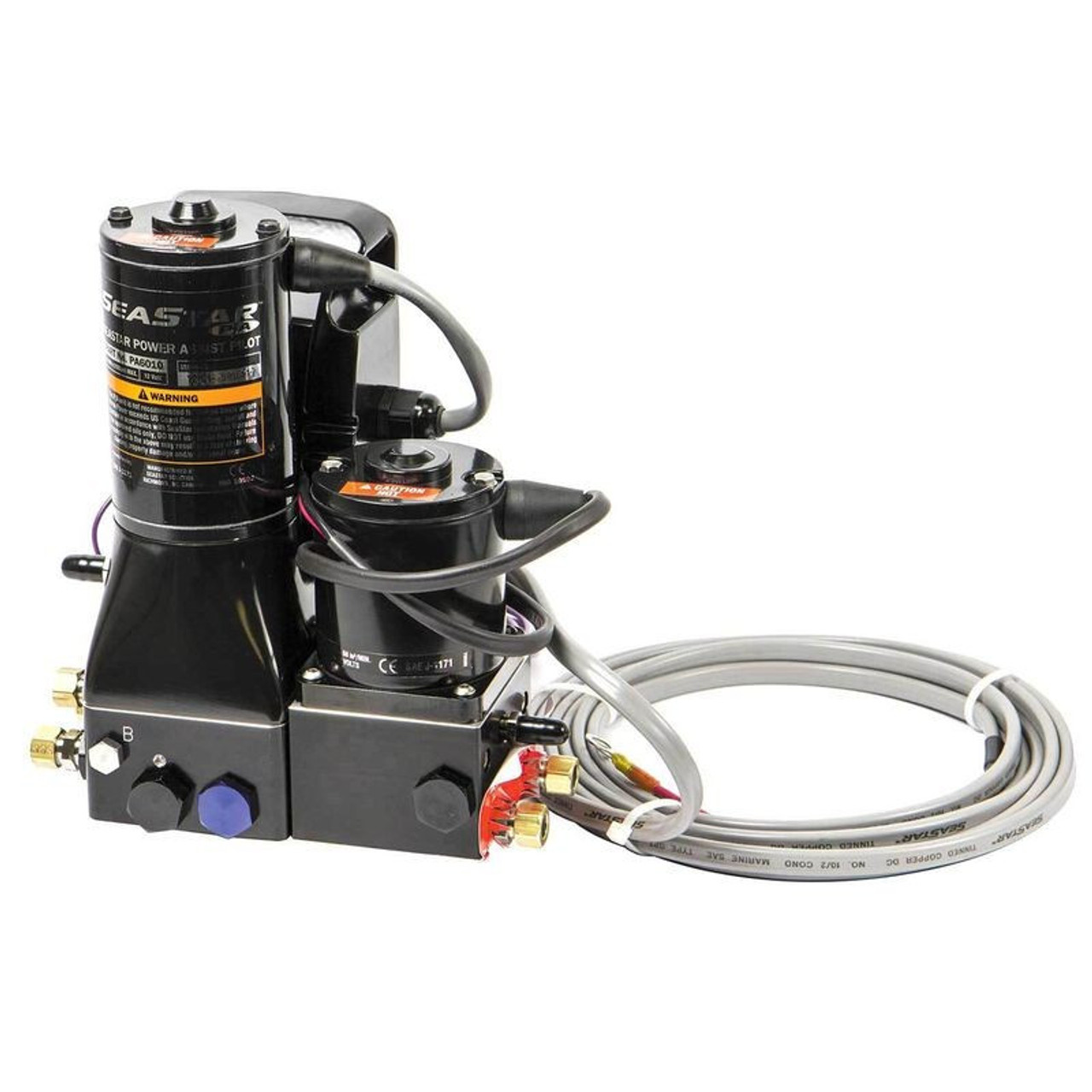

SeaStar PA7020 - Marine Hydraulic Steering Power Assist and Type 2 AutoPilot Pump 24v 110cu.in.

SKU: ALP PA7020

€ 4.063,21

1-2 weeks delivery time

- +

Add to cart

The SeaStar PA7020 is a 24V power assist system combined with an autopilot pump. It’s designed to reduce steering torque in manual hydraulic systems, providing easy steering even under heavy loads, ideal for both outboard and inboard boats.

Description
Ask a Question

SeaStar PA7020 - Marine Hydraulic Steering Power Assist and Type 2 AutoPilot Pump 24V 110cu.in.

The SeaStar PA7020 combines the SeaStar PA1200-2 and the SeaStar AP2433 to greatly reduce steering wheel torque in manual hydraulic steering systems, while also providing a pump for autopilot installations. This power assist system makes steering much easier, even under heavy loads. The high-efficiency hydraulic pump operates quietly with minimal vibration, making it suitable for both outboard and inboard applications.
- Voltage: 24V
- Autopilot Pump Size: 110 cu. in.
- Wire Length: 24"
- Wire Gauge: 12 AWG
- Oil Compatibility: SeaStar Steering Fluid
- Max PSI: 1000 PSI
- Typical Current Draw: 3-6 Amps @ 24V
- Weight: 5 lbs
- Wiring: Bare leads
- Applications: Suitable for outboard and inboard boats
- Features:
  - Converts manual hydraulic steering to power steering
  - Easy installation on every boat, OEM or retrofit
  - Simple add-on to a SeaStar manual hydraulic steering system
  - Ignition protected for safety
  - In case of power loss, the system automatically reverts to manual hydraulic mode
How the SeaStar PA7020 Works:

The SeaStar PA7020 is an electronically controlled hydraulic pump that boosts the fluid being sent from the helm pump to the steering cylinder. This results in much easier steering effort, even under heavy loads. A compensating line connects the PAA unit to the helm pump, allowing it to share fluid with the helm reservoir, ensuring smooth operation.

SeaStar PA7020 Compatibility:

The PA7020 is designed for recreational marine applications and works seamlessly with SeaStar hydraulic steering systems. For optimal performance, it is recommended to use the PA7020 with SeaStar 1.4, 1.7, and 2.0 cu in helm pumps.

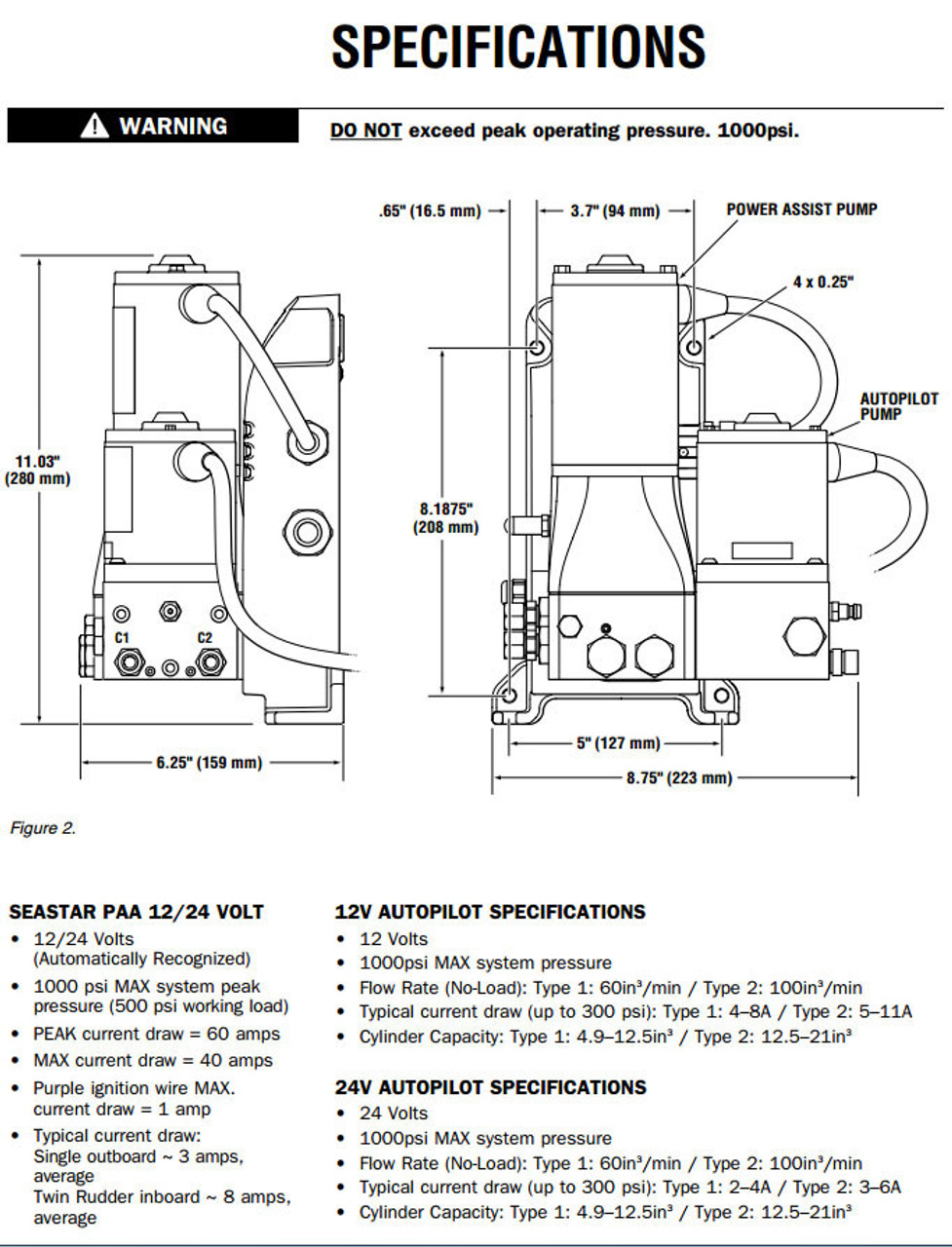

Specifications:
- Model: PA7020
