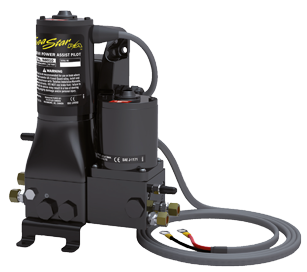

Seastar PA7010 - Marine Hydraulic Steering Power Assist and Type 1 AutoPilot Pump 24v 60cu.in. (For Cyl. 73-205cc)

SKU: ALP PA7010

€ 4.063,21

1-2 weeks delivery time

- +

Add to cart

The SeaStar PA7010 is a 24V power assist and autopilot pump system designed to reduce steering effort and provide smoother handling under heavy loads. It’s compatible with both outboard and inboard boats, providing versatility for a variety of steering systems.

Description
Ask a Question

SeaStar PA7010 - Marine Hydraulic Steering Power Assist and Type 1 AutoPilot Pump 24V 60cu.in. (For Cyl. 73-205cc)

The SeaStar PA7010 combines the SeaStar PA1200-2 and the SeaStar AP2419 to reduce steering wheel torque in manual hydraulic steering systems while providing a pump for autopilot installations. This versatile system boosts steering effort even under heavy loads, making steering easier and more manageable. It’s compatible with both outboard and inboard applications and designed for cylinders between 73cc and 205cc.
- Voltage: 24V
- Autopilot Pump Size: 60 cu. in.
- Wire Length: 24"
- Wire Gauge: 12 AWG
- Oil Compatibility: SeaStar Steering Fluid
- Max PSI: 1000 PSI
- Typical Current Draw: 2-4 Amps @ 24V
- Weight: 5 lbs
- Wiring: Bare leads
- Applications: Suitable for outboard and inboard boats, for cylinders 73-205cc
- Features:
  - Converts manual hydraulic steering to power steering
  - Easy installation on every boat, OEM or retrofit
  - Simple add-on to a SeaStar manual hydraulic steering system
  - Ignition protected for safety
  - In case of power loss, the system automatically reverts to manual hydraulic mode
How the SeaStar PA7010 Works:

The SeaStar PA7010 is an electronically controlled hydraulic pump that boosts the fluid being sent from the helm pump to the steering cylinder. This results in much easier effort at the steering wheel, even under heavy loads. A compensating line connects the PAA unit to the helm pump, allowing it to share fluid with the helm reservoir, ensuring smooth and efficient operation.

SeaStar PA7010 Compatibility:

The PA7010 is designed for recreational marine applications and works seamlessly with SeaStar hydraulic steering systems. For optimal performance, it is recommended to use the PA7010 with SeaStar 1.4, 1.7, and 2.0 cu in helm pumps.

Specifications:
- Model: PA7010
