SKU:
ALP PA6010
€ 3.602,02
1-2 weeks delivery time
-
+
The SeaStar PA6010 is a 12V power assist system combined with an autopilot pump. It reduces steering torque in manual hydraulic systems and ensures smoother operation, offering easy installation for outboard and inboard boats.
- Description
- Ask a Question
-

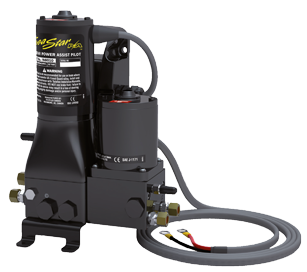

SeaStar PA6010 - Marine Hydraulic Steering Power Assist and Type 1 AutoPilot Pump 12V 60cu.in. (For Cyl. 73-205cc)
The Dometic SeaStar PA6010 is a unique combination of the SeaStar PA1200-2 and the SeaStar AP1219, designed to reduce steering wheel torque in manual hydraulic steering systems and provide an autopilot pump. This system makes steering easier by adding power assist, especially when the autopilot is in standby mode. Equipped with a high-efficiency hydraulic gear pump, it operates with minimal vibration and noise, ensuring smooth operation for both outboard and inboard applications.
- Voltage: 12V
- Autopilot Pump Size: 60 cu. in.
- Wire Length: 24"
- Wire Gauge: 12 AWG
- Oil Compatibility: SeaStar Steering Fluid
- Max PSI: 1000 PSI
- Typical Current Draw: 4-8 Amps @ 12V
- Wiring: Bare leads
- Applications: Suitable for outboard and inboard boats, for cylinders 73-205cc
- Features:
- Converts manual hydraulic steering to power steering
- Easy installation on every boat, OEM or retrofit
- Simple add-on to a SeaStar manual hydraulic steering system
- Ignition protected for safe use
- In case of power loss, the system automatically reverts to manual hydraulic mode
Specifications:
- Model: PA6010
-
