SKU:
ALP PA1200-2
€ 2.771,24
1-2 weeks delivery time
-
+
The SeaStar PA1200-2 Power Assist SPA system is designed to enhance steering ease and comfort for marine applications, making it ideal for 150HP+ single outboards, heavy 4-stroke outboards, twin/triple outboards, and inboards with heavy rudder torque. Its key features include reduced wheel effort, easy installation as an add-on to existing SeaStar systems, and compatibility with both 12V and 24V systems. The system also works seamlessly with marine autopilots and comes with a 15' wiring harness and a 2-year warranty.
- Description
- Ask a Question
-

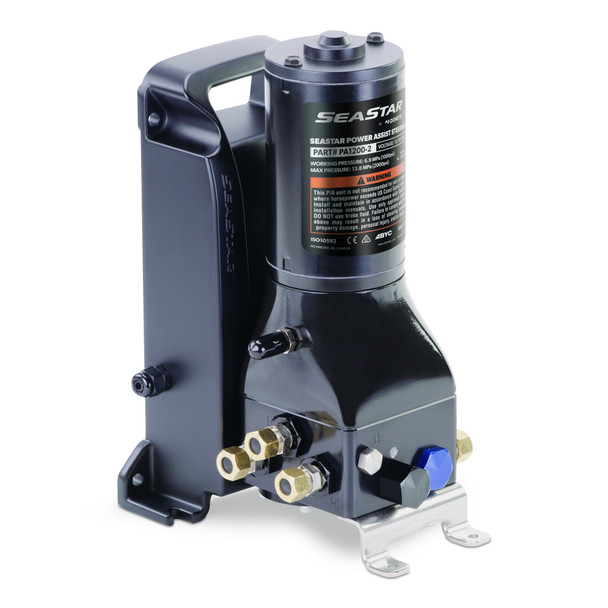

SeaStar PA1200-2 - Power Assist SPA 12/24V With 15' Cable
Introducing the SeaStar PA1200-2, designed for both comfort and reliability, this power assist system enhances steering ease, reduces wheel effort, and simplifies installation for a variety of marine applications.
- Applications:
- 150HP+ Single outboards
- Heavy 4 stroke outboards
- Twin/Triple Outboards
- Inboards with heavy rudder torque
- Features & Benefits:
- Dramatically increases steering comfort
- Reduces wheel effort
- Simple "add-on" to existing SeaStar manual steering systems
- Auto recognizes system voltage (12V or 24V)
- Number of turns lock to lock remains constant
- Compatible with SeaStar Power Purge System
- Works with marine autopilots
- Mounting bracket included (wall or floor mount)
- Wiring harness included
- Specifications:
- Input Voltage: 12 or 24VDC (Automatically recognized)
- Max PSI Rating: 1000PSI
- Typical Current Draw: ~3 Amps
- Max Current Draw: 50A Max, 60A Peak (1A for system electronics)
- Fluid Compatibility: SeaStar Steering Fluid HA5430H or MIL Spec H5606QT
- Harness Length: 15'
- Warranty: 2 Years

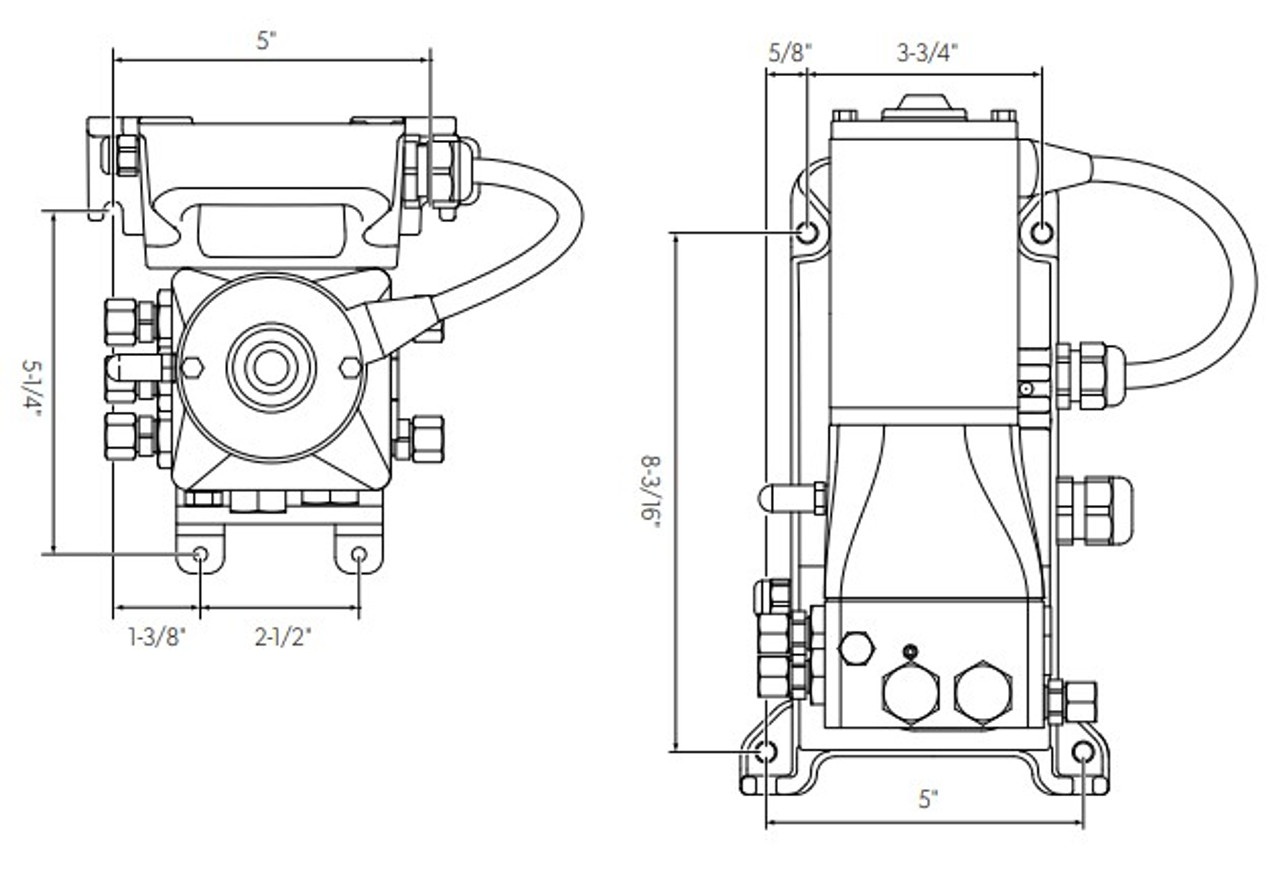

- Dimensions:
- Height: 11.1"
- Width: 6.2"
- Depth: 6.5"
- Weight: 13lbs
- Applications:
-
