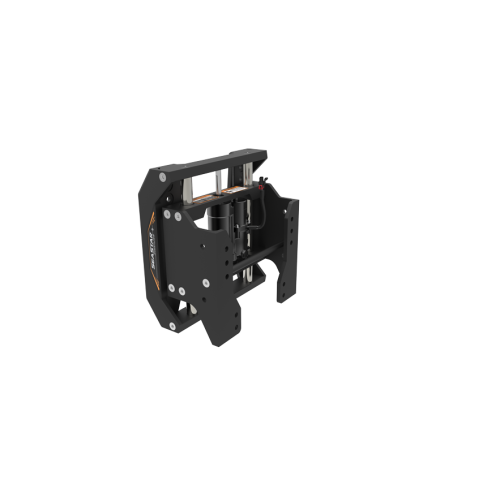

Seastar JP5040X - Electro Hydraulic Jackplate Powerlift, 4" Setback (Xtreme)

SKU: ALP JP5040X

€ 2.815,74

1-2 weeks delivery time

- +

Add to cart

The SeaStar JP5040X Xtreme jackplate is designed for engines up to 400 horsepower, offering rapid hydraulic response and smooth operation. With enhanced materials and performance features, it’s ideal for boats requiring precision and durability.

Description
Ask a Question

SeaStar JP5040X - Electro Hydraulic Jackplate Powerlift, 4" Setback (Xtreme)

The SeaStar JP5040X Xtreme model is built to handle even more demanding conditions, offering support for engines up to 400HP. With enhanced materials and performance features, this jackplate is perfect for high-powered setups that require precision and durability.
- Features:
  - Handles up to 400 horsepower engines with a maximum weight of 356kg (785lbs)
  - Rapid hydraulic response: 147mm travel in 8.5 seconds
  - Complete rigid engine support at full thrust
  - Easily moves engine up or down at full thrust
  - Smooth operation with composite bushings
  - Easy wrench access to engine bolts from the side
  - Designed to maximize engine tilt with SeaStar steering cylinders
  - High visibility lift scale for quick glance operation
  - Environmentally sealed non-contact SmartStick available for precise height information
  - Includes basic rocker switch and harness with integrated circuit breaker
- Specifications:
  - Length: 20"
  - Width: 6.5"
  - Height: 19"
  - Weight: 56lbs
  - COO: USA
  - 4" Setback
  - Up to 400HP engines
  - Replaces JP4040
  - Warranty: Limited 2 Year
- Properties:
  - Article Number: JP5040X
  - Outboard Size: 4"
  - Model: Setback Xtreme
  - Weight: 29.50kg
