SKU:
ALP HH5275
€ 2.346,38
1-2 weeks delivery time
-
+
The SeaStar HH5275 Capilano Helm 1275v offers robust hydraulic steering with variable displacement for adjustable steering turns. It includes a pressure relief valve and non-air pressurized design, suited for rugged marine environments.
- Description
- Ask a Question
-

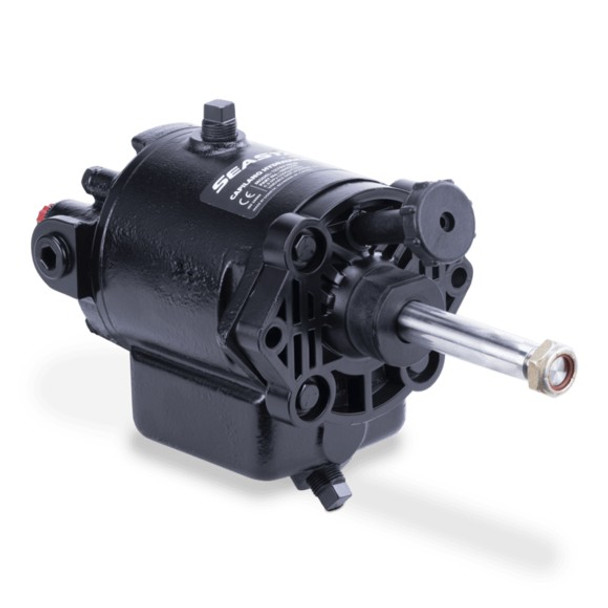

SeaStar HH5275 - Capilano Helm 1275v With Adjustable Volume For Hydraulic Steering System
The Capilano Marine Hydraulic Steering Helm Pump HH5275 (1275V) is built to meet the demands of rugged marine environments worldwide. It replaces models such as Hynautic H41, H4102, H42, H4202, and H4204, providing reliable performance for hydraulic steering systems.
- Variable displacement for adjustable steering wheel turns lock to lock, adapting to various maneuvering and weather conditions
- Easy to install
- System design eliminates air pressurization, preventing air leaks
- Incorporated pressure relief valve to protect against thermal expansion
- Variable Displacement: 2.7–5.4 cu.in./rev
- Relief Valve PSI Settings: 1000
- Maximum Wheel Diameter: 42"
- Replaces Capilano 275V
- Color: Black
- Fluid Type: HA5430H

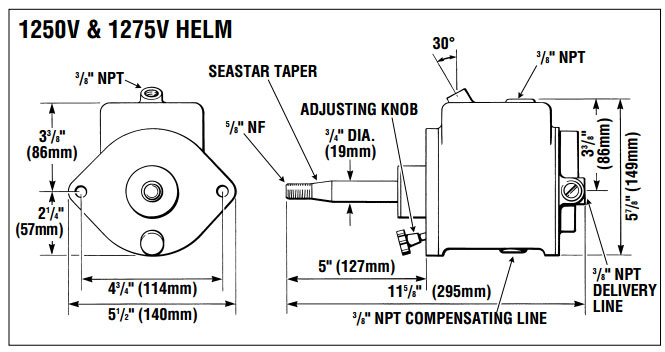

- Dimensions: Depth 11 5/8", Height 5 7/8", Width 5 1/2"
- Net Weight: 15.42 lbs
- Control Series: Capilano 1275V
- Volume: 44.2–88.4 cc
- Working Pressure: 70 bar
- Article Number: HH5275
- EAN Number: 8719182460183
-
