SKU:
ALP HH5250
€ 2.195,62
1-2 weeks delivery time
-
+
The SeaStar HH5250 Capilano Helm 1250v is a heavy-duty hydraulic steering helm pump with adjustable volume, built for commercial vessels. It features variable displacement, a pressure relief valve, and a non-air pressurized system to prevent leaks.
- Description
- Ask a Question
-

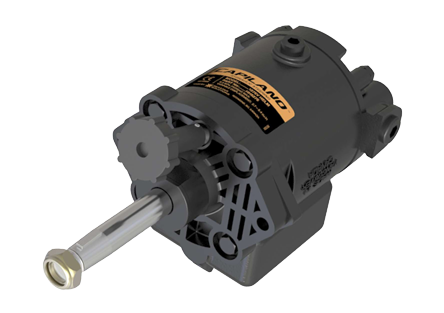

SeaStar HH5250 - Capilano Helm 1250v With Adjustable Volume For Hydraulic Steering System
The Capilano Marine Hydraulic Steering Helm Pump HH5250 (1250V) is engineered for heavy-duty commercial vessels, delivering rugged reliability worldwide. Known as one of the most popular helms, it serves as an alternative to Hynautic models H21, H22, H25, H26, and H31.

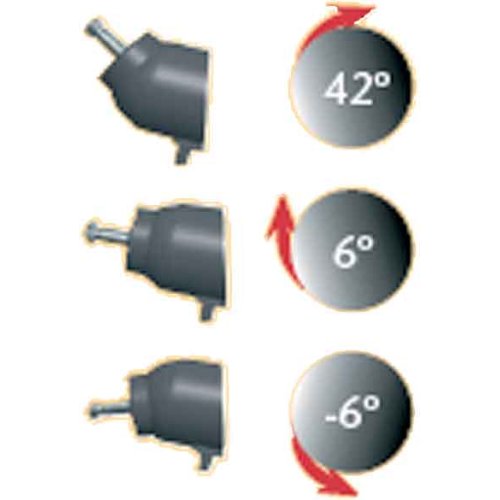

- Variable displacement allowing adjustable steering wheel turns from lock to lock for tailored maneuvering and weather conditions
- Easy installation process
- Non-air pressurized system preventing air leaks
- Built-in pressure relief valve to protect the system from thermal expansion effects
- Variable Displacement: 1.7–3.4 cu.in./rev
- Relief Valve PSI Settings: 1000
- Maximum Wheel Diameter: 36"
- Replaces Capilano 250V
- Color: Black
- Fluid Type: HA5430H
- Dimensions: Depth 11 5/8", Height 5 7/8", Width 5 1/2"
- Net Weight: 15.93 lbs
- Control Series: Capilano 1250V
- Volume: 22.8–55.7 cc
- Working Pressure: 70 bar
- Article Number: HH5250
- EAN Number: 8719182460183
-
