SKU:
ALP HC5351
€ 1.830,80
1-2 weeks delivery time
-
+
The SeaStar HC5351 Capilano hydraulic steering cylinder is built for durability and smooth operation with heavy-duty brass and bronze materials, compatible with Capilano helm pumps and Hynautic 3 Line systems. It offers two-axis articulation and includes bleed fittings for reliable inboard steering.
- Description
- Ask a Question
-
SeaStar HC5351 - Capilano Cylinder for Hydraulic Inboard Steering System (BA200-7TM)
The Capilano hydraulic steering cylinder is designed for durability and high performance in marine applications. Crafted from heavy duty brass with a bronze trunnion mount and a chrome plated stainless steel rod, it is an ideal hydraulic ram for trawlers, pleasure boats, and work vessels with single or dual rudder inboard steering. Compatible with Capilano helm pumps and commonly used in Hynautic 3 Line systems, this cylinder ensures reliable and smooth steering control.
- 2 Hydraulic Lines
- Stainless and Bronze Mounting Hardware
- Heavy Duty Brass Cylinder
- Bleed fittings included
- Chrome plated stainless steel rod
- Not an air-pressurized system – no air leaks or pressure drops

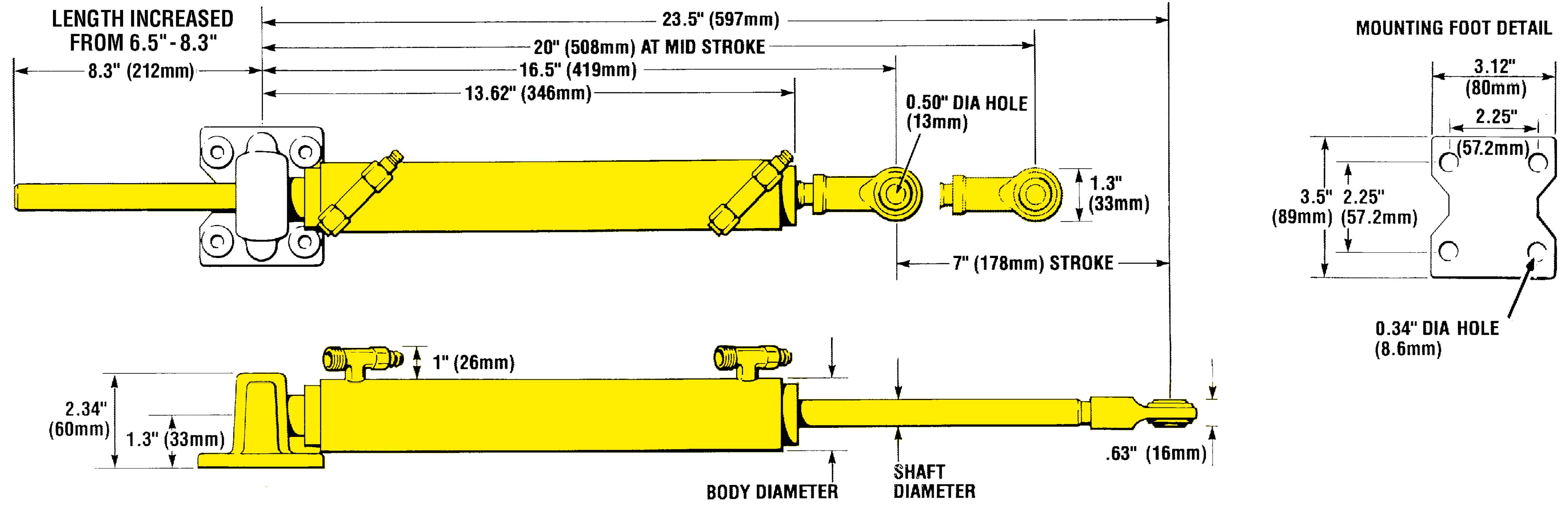

- Cylinder Material: Heavy Duty Brass with chrome plated stainless steel rod
- Stroke: 7" (178 mm)
- Mounting Type: Bronze Trunnion Mount
- Rod Connection: Stainless Steel 5/8" Rod End Ball Joint Type - HP6013
- Bore Diameter: 2.00" (50.8 mm)
- Nominal Shaft Diameter: 0.75" (19.0 mm)
- Volume: 18.9 cubic inches (309 cc)
- Seal Kit: HS5184
- Torque at 1000 psi @ 35°: 13,200 in/lbs
- Two Axis Articulation
- Control Type: BA200-7TM
- Series: Capilano
- Body Material: Bronze
- Fittings Size: 1/2"
- Rudder Torque: 151 kgm
- Article Number: HC5351
-
