SKU:
ALP HC5350
1-2 weeks delivery time
Our managers will contact you and clarify the terms of the order

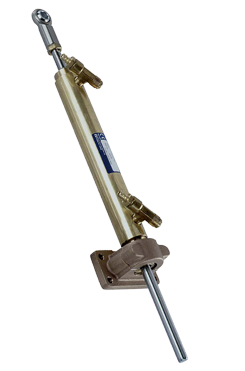

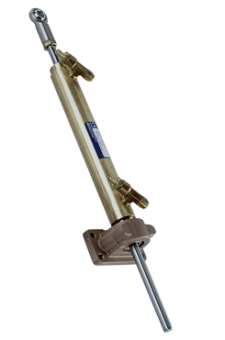

The SeaStar HC5350 Capilano hydraulic steering cylinder features heavy-duty brass construction with a bronze trunnion mount and chrome-plated stainless steel rod, designed for long-lasting performance on various boats. It includes two hydraulic lines, bleed fittings, and mounting hardware, ensuring a leak-free, efficient steering system.
- Description
- Ask a Question
-
SeaStar HC5350 - Capilano Cylinder 110kgm For Hydraulic Inboard Steering System (BA175-7TM)
The SeaStar HC5350 Capilano hydraulic steering cylinder is engineered for long-lasting performance on trawlers, pleasure boats, and workboats with single or dual rudders. Made from heavy-duty brass with a bronze trunnion mount and a chrome-plated stainless steel rod, this hydraulic ram is compatible with Capilano helm pumps and Hynautic 3 Line systems. It features two hydraulic lines, bleed fittings, and stainless and bronze mounting hardware for reliable operation without air leaks or pressure loss.
- Cylinder Material: Heavy Duty Brass with chrome-plated stainless steel rods

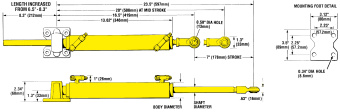

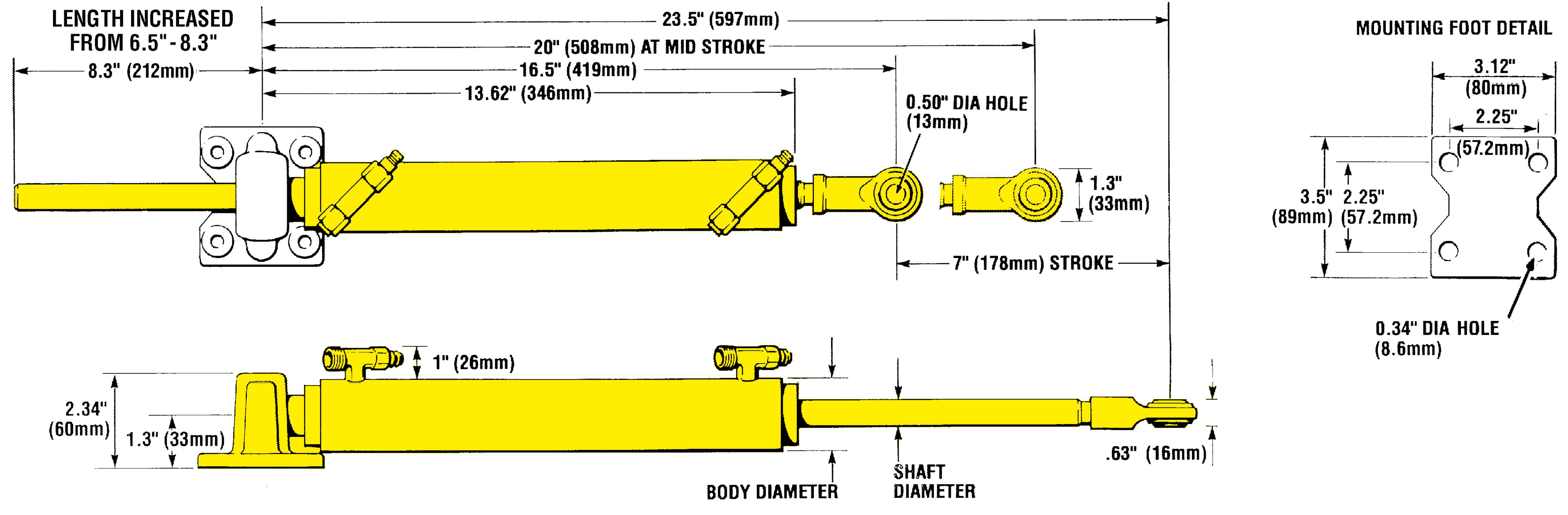

- Stroke Length: 7"
- Mounting Type: Bronze Trunnion Mount
- Rod Connection: Stainless Steel 3/4" Rod End Ball Joint (HP6019)
- Bore Diameter: 1.75" (44.4 mm)
- Nominal Shaft Diameter: 0.75" (19.0 mm)
- Volume: 13.7 cubic inches (225 cc)
- Seal Kit: HS5183
- Torque at 1000 psi @ 35°: 9569 in/lbs
- Two Axis Articulation
- Includes bleed fittings
- Not an air-pressurized system — eliminates air leaks and pressure drops
Properties
General
Article number: HC5350 -
