SKU:
ALP HC5314-3
€ 585,43
1-2 weeks delivery time
-
+

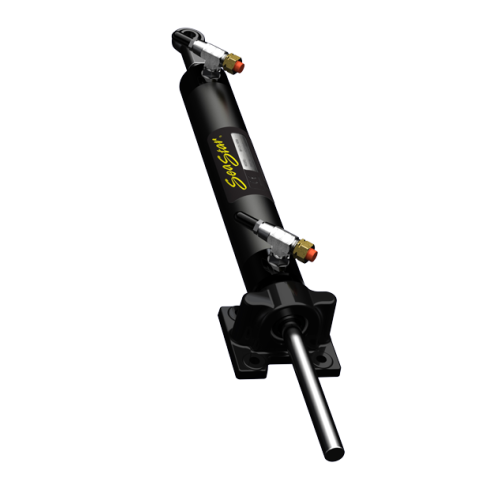

The SeaStar HC5314-3 hydraulic steering cylinder offers a robust solution with two-axis articulation, marine-grade aluminum body, and updated fittings. It provides smooth operation and 82kgm rudder torque for single or dual rudder boats, replacing earlier models with improved features.
- Description
- Ask a Question
-
SeaStar HC5314-3 - Cylinder 82kgm For Hydraulic Inboard Steering System (BA150-7ATM)
The SeaStar HC5314-3 cylinder offers a robust hydraulic steering solution for single or dual rudder vessels with two-axis articulation and easy autopilot interface. Made from marine-grade aluminum, this cylinder replaces the HC5314 with upgraded -5ORB fittings and can serve as an alternative to certain Capilano cylinders. Consult SeaStar tech support to confirm compatibility before purchase.
- Low friction hydraulic steering
- Fits single or dual rudder boats
- Marine grade aluminum construction
- Certified to A.B.Y.C and N.M.M.A. standards
- Replaces HC5314 with updated -5ORB fittings

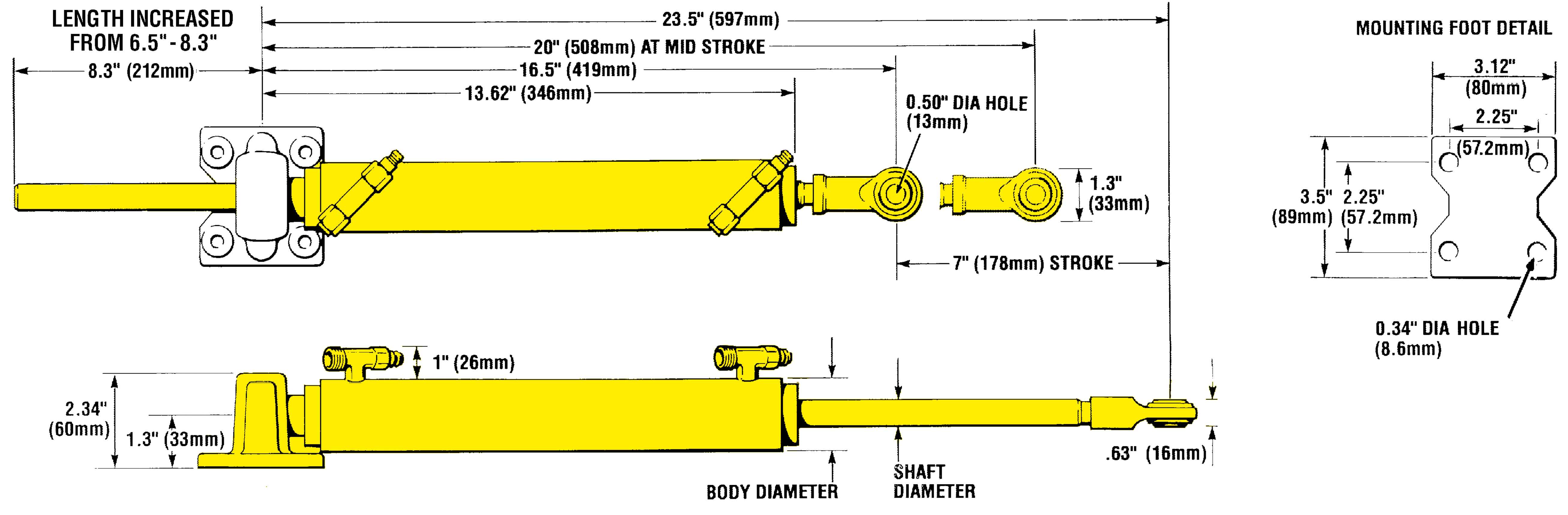

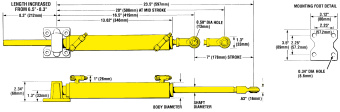

- 7" Stroke
- 10.2 cu.in. displacement
- 1.50" body diameter
- 0.625" shaft diameter
- Torque at 1000 psi and 35°: 7117 in/lbs
- Control Type: BA150-7ATM
- Serie: SeaStar
- Body: Aluminum
- Fittings: ORB
- Stroke: 178 mm
- Volume: 168 cc
- Rudder Torque: 82 kgm
- Article Number: HC5314-3
-
