SKU:
ALP HC5313-3
€ 568,80
1-2 weeks delivery time
-
+
The SeaStar HC5313-3 hydraulic steering cylinder delivers reliable performance for pleasure and work boats up to 50 feet, featuring marine-grade aluminum construction, easy installation, and compliance with safety standards, providing 66kgm rudder torque.
- Description
- Ask a Question
-

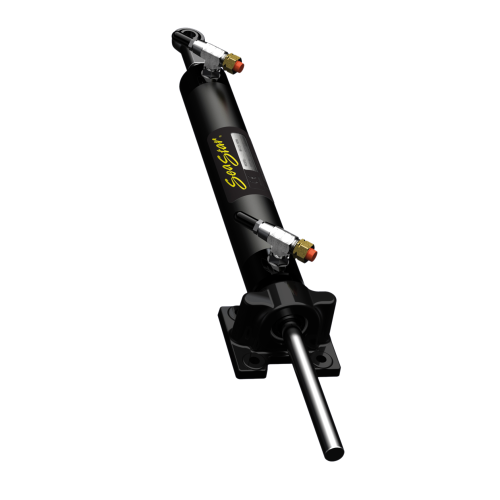

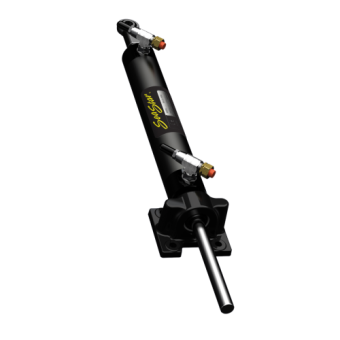

SeaStar HC5313-3 - Cylinder 66kgm For Hydraulic Inboard Steering System (BA135-7ATM)
The SeaStar HC5313-3 hydraulic steering cylinder is designed for pleasure and work boats up to 50 feet, providing superior comfort and control. Its marine-grade aluminum construction ensures durability, and the system fits easily on both single and dual rudder vessels. This popular model meets industry standards for safety and performance.
- Low friction hydraulic steering
- Simple installation on single or dual rudder boats
- Marine grade aluminum body
- Certified to A.B.Y.C and N.M.M.A. standards

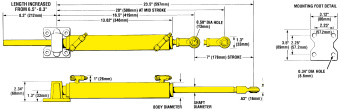

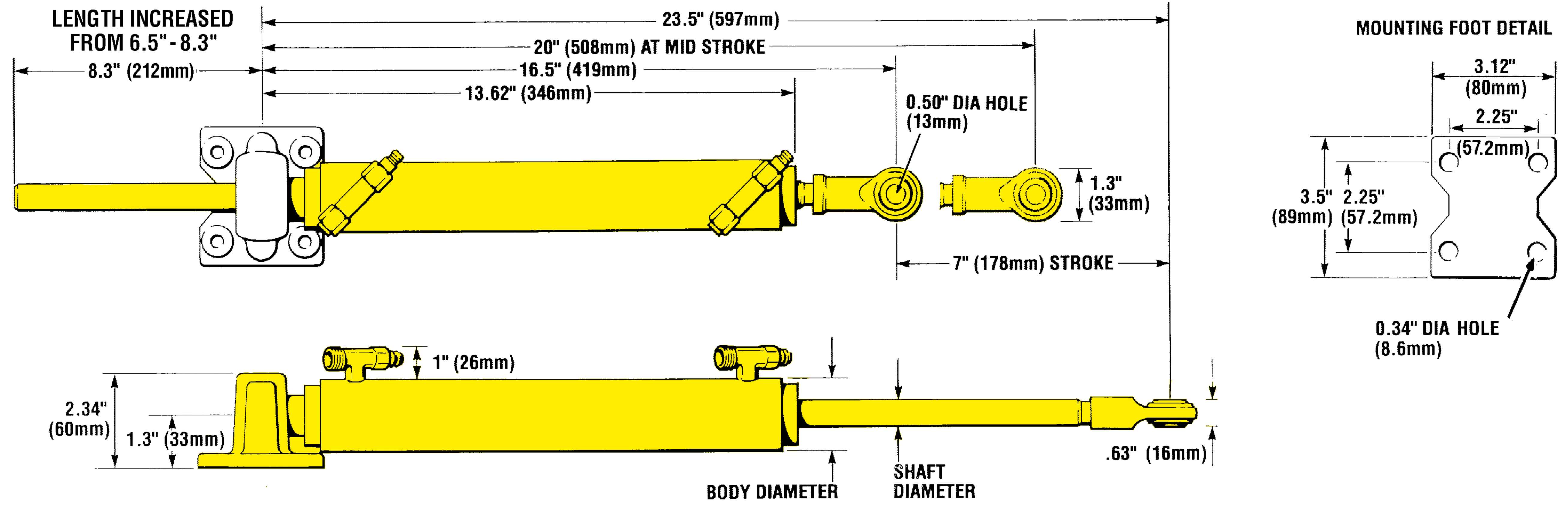

- 7" Stroke
- 8.3 cu.in. displacement
- 1.375" body diameter
- 0.625" shaft diameter
- Torque at 1000 psi and 35°: 5741 in/lbs
- Control Type: BA135-7ATM
- Serie: SeaStar
- Body: Aluminum
- Fittings: ORB
- Stroke: 178 mm
- Volume: 135 cc
- Rudder Torque: 66 kgm
- Article Number: HC5313-3
-
