SKU:
ALP HC5312-3
€ 513,57
1-2 weeks delivery time
-
+
The SeaStar HC5312-3 hydraulic steering cylinder is made from marine-grade aluminum and provides smooth two-axis movement with easy autopilot integration. It is designed for single or dual rudder boats, offering 58kgm rudder torque and meeting industry standards.
- Description
- Ask a Question
-

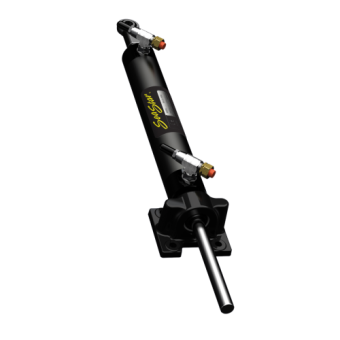

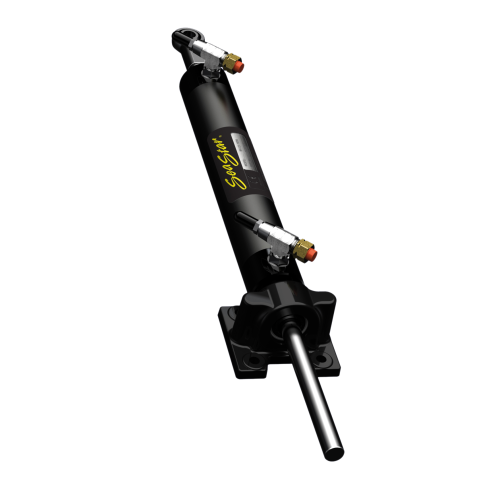

SeaStar HC5312-3 - Cylinder 58kgm For Hydraulic Inboard Steering System (BA125-7ATM)
The SeaStar HC5312-3 hydraulic steering cylinder is crafted for both single and dual rudder boats, offering smooth two-axis movement and straightforward autopilot integration. Built from marine-grade aluminum, it delivers reliable steering performance backed by a two-year limited warranty. Suitable for a wide variety of marine steering setups.
- Low friction hydraulic steering
- Compatible with single or dual rudder installations
- Marine grade aluminum construction
- Complies with A.B.Y.C standards and N.M.M.A. certifications

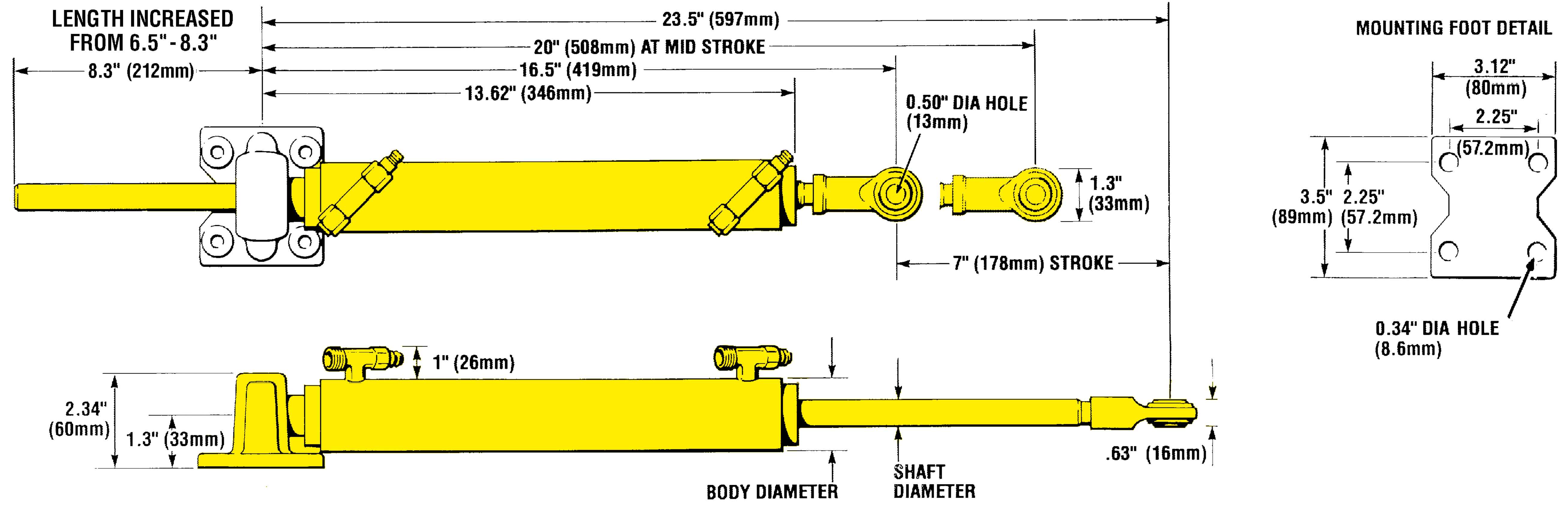

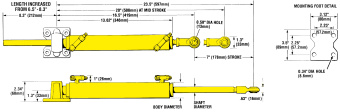

- 7" Stroke
- 7.2 cu.in. displacement
- 1.25" body diameter
- 0.50" shaft diameter
- Torque at 1000 psi and 35°: 5024 in/lbs
- Two year warranty
- Control Type: BA125-7ATM
- Serie: SeaStar
- Body material: Aluminum
- Fittings: ORB
- Stroke: 178 mm
- Volume: 118 cc
- Rudder Torque: 58 kgm
- Article Number: HC5312-3
-
