SKU:
ALP AR4502RM
€ 586,64
1-2 weeks delivery time
-
+

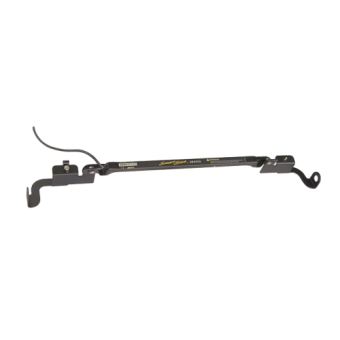

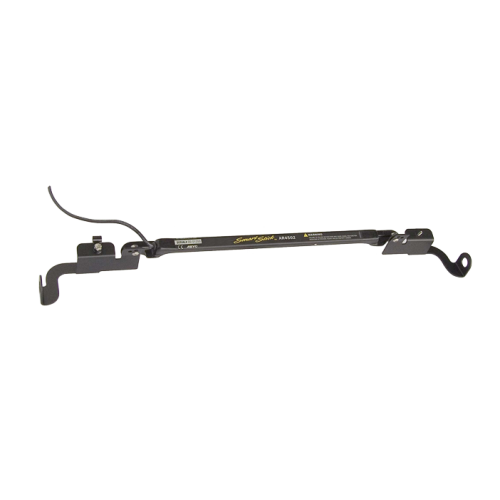

The SeaStar AR4502RM is a non-contact autopilot position sensor designed specifically for Ray Marine autopilot systems. It offers easy installation with integrated electronics, is immune to electromagnetic interference, and provides long-lasting performance in harsh marine environments. With a range of 8.0 inches, it’s perfect for use with SeaStar outboard front mount cylinders.
- Description
- Ask a Question
-
SeaStar AR4502RM - Smartstick Ray Marine Output - Ray Marine Autopilot Position Sensor
The Dometic SeaStar AR4502RM is a non-contact autopilot position sensor, designed to mount to SeaStar outboard front mount cylinders (HC5345 and HC5358). Known previously as Teleflex SmartStick, this model replaces the SmartStick AR4102 and AR4202.
- Non-Contact Sensing: No moving parts, enhancing longevity and performance.
- Easy Installation: Mounts without external parts or linkages.
- Potted Electrical Parts: Provides resistance to corrosion for reliable operation.
- No External Black Box: Integrated electronics make installation hassle-free with no need for splicing.
- 35' Cable: Can be cut to size, with a labeled jacket for clear identification.
- Digital Electronics Immune to EMI: Enhances autopilot functionality with resistance to electromagnetic interference.
- Autopilot Specific Part Numbers: No jumpers need to be cut for installation.
- Convenient Sensor Installation: Effortless to integrate into your system.
Specifications:
- Range: 8.0"
- Resolution: 0.012"
- Linearity: 0.048"
- Repeatability: 0.024"
- Environmental Resistance:
- Salt Spray 1000 hours
- IEC IP67 (Submersible to 1m)
- Resistant to dirt, oil, and SAE fluids
- Thermal shock and vibration resistant
Order Information for AR4502RM:
- Autopilot: Ray Marine Installations Only
- Output: 2.2V to 2.8V
-
