SeaStar AP2433 - Marine Hydraulic Autopilot Pump Type 2 24v 100in³ Per Min.

SKU: ALP AP2433

€ 1.230,28

1-2 weeks delivery time

- +

Add to cart

The SeaStar AP2433 is a dependable 24V autopilot pump that offers two fixed flow rates and operates with minimal vibration. It is designed for both inboard and outboard steering systems and can be used either as a stand-alone pilot pump or retrofitted to a SeaStar P/A unit.

Description
Ask a Question

SeaStar AP2433 - Marine Hydraulic Autopilot Pump Type 2 24V 100in³ Per Min

The Dometic SeaStar AP2433 is a dependable, plug-and-play autopilot pump available in 12V and 24V configurations. It features two fixed flow rates: 60 cu. in./min and 110 cu. in./min. This reversible pump utilizes an internal hydraulic gear mechanism and is designed to be compact, minimizing noise and vibration. It serves as an ideal stand-alone pilot pump or can be retrofitted to a SeaStar P/A unit, providing flexibility for various marine steering systems.
- Input Voltage: 24VDC
- Max PSI Rating: 1000 PSI
- Flow Rate: 100 cubic inches per minute with no load
- Typical Current Draw: 3-6 Amps (up to 300 PSI)
- Cylinder Capacity: 12.5-21 Cu.In.
- Fluid Compatibility: SeaStar Steering Fluid HA5430H or MIL Spec H5606QT
- Applications: Suitable for inboard, outboard, and I/O steering systems
- Warranty: 2 Years
- Wire Specifications: 24" 12 AWG wire (no connectors)

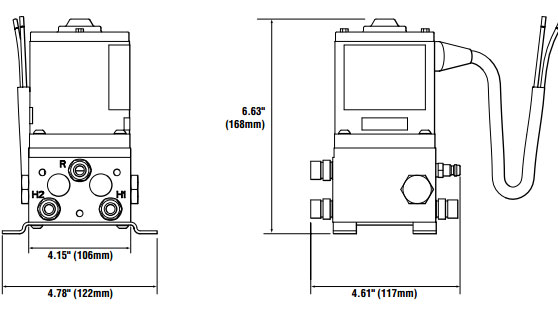

- Dimensions:
  - Product Depth: 4.61 inches
  - Product Height: 6.63 inches
  - Net Weight: 6.55 lbs
Features:
- Long life DC motor with long-lasting brushes
- Compact design for easy mounting
- Simplified installation that fits almost any hydraulic steering system
- Low power consumption
- ABYC, CE, and J1171 compliant
- Marine-grade engineering for corrosion resistance
- Whisper quiet operation
- Mounting bracket included
- Stand-alone or mounts to SeaStar Power Assist unit
- Direct replacement for other 12V and 24V autopilot pumps
Specifications:
- Model: AP2433
