SeaStar AP2419 - Marine Hydraulic Autopilot Pump 24V Type 1 60in.³ Per Min.

SKU: ALP AP2419

€ 1.155,72

1-2 weeks delivery time

- +

Add to cart

The SeaStar AP2419 is a versatile 24V autopilot pump offering two fixed flow rates and minimal noise. It can be used as a standalone pilot pump or retrofitted to a SeaStar P/A unit, making it suitable for a variety of hydraulic steering systems.

Description
Ask a Question

SeaStar AP2419 - Marine Hydraulic Autopilot Pump 24V Type 1 60in.³ Per Min

The Dometic SeaStar AP2419 is a highly reliable, plug-and-play autopilot pump, designed for use with both 12V and 24V systems. It offers two fixed flow rates: 60 cu. in./min and 100 cu. in./min. This compact and reversible pump uses an internal hydraulic gear mechanism, producing very little noise and vibration. Ideal as a stand-alone pilot pump or for retrofitting to a SeaStar P/A unit, it is a highly versatile choice for your boat's steering system.
- Input Voltage: 24VDC
- Max PSI Rating: 1000 PSI
- Flow Rate: 60 cubic inches per minute with no load
- Typical Current Draw: 2-4 Amps (up to 300 PSI)
- Cylinder Capacity: 4.9-12.5 Cu.In.
- Fluid Compatibility: SeaStar Steering Fluid HA5430H or MIL Spec H5606QT
- Applications: Suitable for inboard, outboard, and I/O steering systems
- Warranty: 2 Years
- Wire Specifications: 24" 12 AWG wire (no connectors)

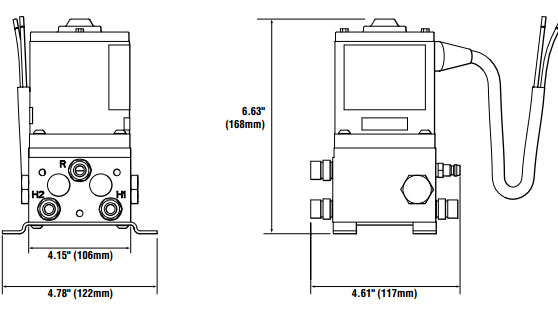

- Dimensions:
  - Product Depth: 4.61 inches
  - Product Height: 6.63 inches
  - Net Weight: 6.55 lbs
Features:
- Long life DC motor with long-lasting brushes
- Compact design for easy mounting
- Simplified installation that fits almost any hydraulic steering system
- Low power consumption
- ABYC, CE, and J1171 compliant
- Marine-grade engineering for corrosion resistance
- Whisper quiet operation
- Mounting bracket included
- Stand-alone or mounts to SeaStar Power Assist unit
- Direct replacement for other 12V and 24V autopilot pumps
Specifications:
- Model: AP2419
