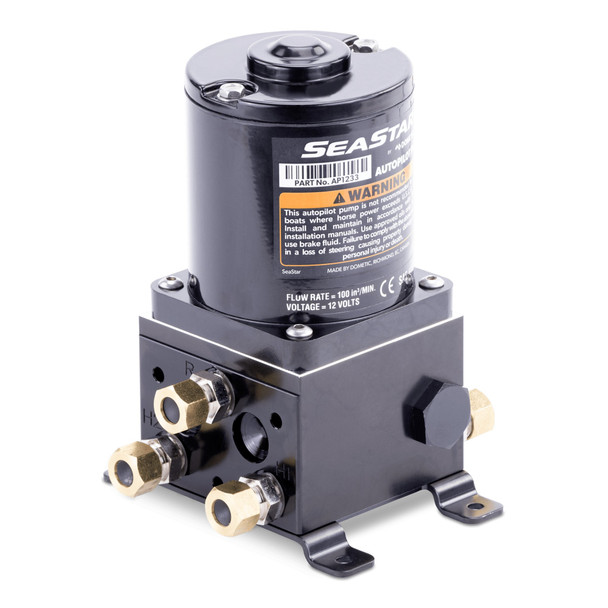

SeaStar AP1233 - Marine Hydraulic Autopilot Pump Type 2 12v 100in³ Per Min.

SKU: ALP AP1233

€ 1.093,54

1-2 weeks delivery time

- +

Add to cart

The SeaStar AP1233 is a 12V autopilot pump with two flow rates: 60 and 110 cubic inches per minute. It’s designed to reduce noise and vibration and can be used in standalone applications or retrofitted to SeaStar P/A units for enhanced steering performance.

Description
Ask a Question

SeaStar AP1233 - Marine Hydraulic Autopilot Pump Type 2 12V 100in³ Per Min

The Dometic SeaStar AP1233 is a reliable, plug-and-play autopilot pump available in 12V and 24V configurations. It offers two fixed flow rates: 60 cu. in./min and 110 cu. in./min. This reversible autopilot pump uses an internal hydraulic gear pump, designed to minimize noise and vibration. It’s an excellent choice as a stand-alone pilot pump on boats, or it can be retrofitted to a SeaStar P/A unit for more versatility in your steering system.
- Input Voltage: 12VDC
- Max PSI Rating: 1000 PSI
- Flow Rate: 100 cubic inches per minute with no load
- Typical Current Draw: 5-11 Amps (up to 300 PSI)
- Cylinder Capacity: 12.5-21 Cu.In.
- Fluid Compatibility: SeaStar Steering Fluid HA5430H or MIL Spec H5606QT
- Applications: Suitable for inboard, outboard, and I/O steering systems
- Warranty: 2 Years
- Wire Specifications: 24" 12 AWG wire (no connectors)

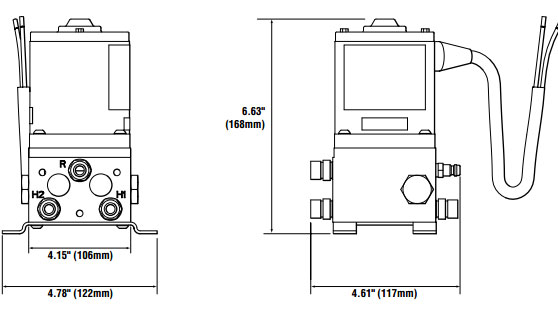

- Dimensions:
  - Product Depth: 4.61 inches
  - Product Height: 6.63 inches
  - Net Weight: 6.55 lbs
Features:
- Long life DC motor with long-lasting brushes
- Compact design for easy mounting
- Simplified installation that fits almost any hydraulic steering system
- Low power consumption
- ABYC, CE, and J1171 compliant
- Marine-grade engineering for corrosion resistance
- Whisper quiet operation
- Mounting bracket included
- Stand-alone or mounts to SeaStar Power Assist unit
- Direct replacement for other 12V and 24V autopilot pumps
Specifications:
- Model: AP1233
