SKU:
ALP AP1219
€ 1.031,45
1-2 weeks delivery time
-
+
The SeaStar AP1219 is a 12V autopilot pump designed for reliable, quiet operation in marine environments. It’s compatible with a range of hydraulic steering systems, offering minimal vibration and a flow rate of 60 cubic inches per minute, ideal for both inboard and outboard applications.
- Description
- Ask a Question
-
SeaStar AP1219 - Marine Hydraulic Autopilot Pump 12V Type 1 60in.³ Per Min
The Dometic SeaStar AP1219 is a high-performance autopilot pump, designed for both 12V and 24V configurations. It offers a reliable and quiet operation with minimal vibration, making it ideal for marine environments. This compact and versatile pump can be installed easily and is compatible with various hydraulic steering systems, including inboard, outboard, and I/O systems.
- Voltage: 12VDC
- Flow Rate: 60 cubic inches per minute (no load)
- Max PSI Rating: 1000 PSI
- Typical Current Draw: 4-8 Amps (Up to 300 PSI)
- Cylinder Capacity: 4.9 - 12.5 Cu.In.
- Fluid Compatibility: SeaStar Steering Fluid HA5430H or MIL Spec H5606QT
- Applications: Inboard, outboard, and I/O steering systems
- Warranty: 2 Years Limited
- Wire: 24" 12 AWG Wire (no connectors)
- Mounting: Mounting bracket included
Key Features of the SeaStar AP1219
- Long-Life DC Motor: Designed with long-life brushes for enhanced durability
- Compact Design: Easy to mount and space-efficient
- Simplified Installation: Compatible with nearly any hydraulic steering system
- Low Power Consumption: Energy-efficient operation
- Marine Grade Engineering: Corrosion-resistant for long-lasting performance
- Whisper Quiet: Low noise and vibration for a smooth experience
- Direct Replacement: Can replace other 12V and 24V autopilot pumps

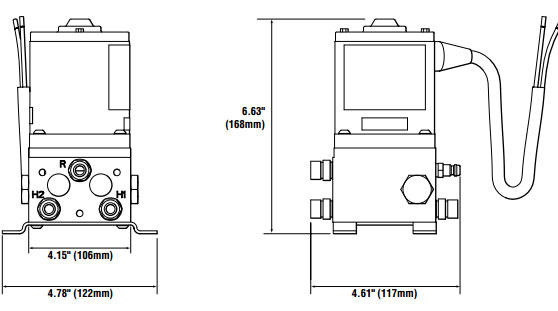

Product Dimensions
- Product Depth: 4.61 inches
- Product Height: 6.63 inches
- Net Weight: 6.55 lbs
Additional Information
- Compliance: ABYC, CE, and J1171 compliant
- Article number: AP1219
-
