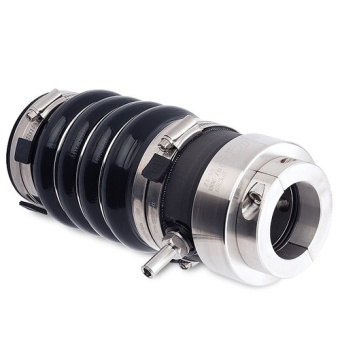

PSS 03-90M-514 - PRO Dripless Shaft Seal 90 mm, 5 1/4" Stern Tube

Article BB-03-90M-514

€ 3.259,26

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The PSS 03-90M-514 is a high-performance dripless shaft seal designed for marine vessels, featuring durable stainless steel and carbon components, reinforced silicone bellow, and optional Nitronic 50 rotor for corrosive environments. It utilizes nitrile o-rings, a secure attachment mechanism, and a cooling water flow to ensure an effective seal. Designed for easy integration with existing PSS Type A Seals, it includes robust stainless steel hose clamps and various specifications for shaft and stern tube diameters, enhancing both reliability and performance in challenging marine applications.

Description
Ask a Question

PSS 03-90M-514 - PRO Dripless Shaft Seal 90 mm, 5 1/4" Stern Tube

The PSS 03-90M-514 is an advanced solution for maintaining optimal performance in marine vessels. Its specialized design ensures reliable sealing, enhancing durability and functionality.

The PYI PSS PRO Shaft Seal features high-quality stainless steel and carbon sealing components, enhanced by a reinforced silicone bellow and a secondary shaft retention collar. It includes 316 stainless steel hose clamps and offers an optional upgrade with a Nitronic 50 rotor component, ideal for use in highly corrosive environments. This creates a dripless mechanical seal suitable for a variety of challenging applications, without replacing the existing PSS Type A Seal, but complementing the PSS Shaft Seal lineup.

How it Works:
- Two nitrile o-rings ensure a tight seal between the stainless steel rotor and the shaft, preventing wear.
- Secured by both a primary set screw and a backup set screw, the stainless steel rotor remains firmly attached to the shaft.
- A seal is established at the mating faces of the carbon stator and stainless steel rotor.
- Raw water flows into the PSS Shaft Seal, cooling and lubricating seal faces during high-speed operations.
- The stationary carbon stator is fixed to the bellow, which itself is secured to the stern tube (shaft log).
- The Shaft Retention Collar connects to the shaft, providing retention for the propeller or rudder in case of a catastrophic failure or disconnection from the coupling.
- Stainless steel rings reinforce the bellow, enhancing strength and durability; external rings are standard for sizes from 2-1/4" (60mm) to 3-3/4" (95mm) and optional for smaller diameters.
- Utilizes 316 stainless steel hose clamps with rolled edges and a non-perforated band and includes hose clamp tail protection and clamp jackets.
Specifications:
- Part # 03-90M-514
- Shaft Diameter (A): 90mm
- Stern Tube Diameter (B): 5-1/4" to 5-3/8"
- Uncompressed Length (C): 10.350"
- Approx. Compressed Length: 9.350"
- Rotor Diameter (D): 6"
- Stern Cuff Length (E): 1.3"
