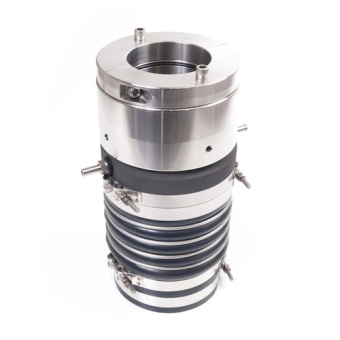

PSS 02-500-714 - Dripless Shaft Seal 5", 7 1/4" Stern Tube

Article BB-02-500-714

€ 8.584,91

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The PSS 02-500-714 Dripless Shaft Seal is a mechanical face seal designed for reliable water protection. It features a stainless-steel rotor and carbon flange that maintain constant contact, accommodating shaft movement and compensating for misalignment. This seal operates effectively across a wide temperature range and high RPMs, with its carbon flange allowing for flexibility and reducing wear on the sealing components.

Description
Ask a Question

PSS 02-500-714 - Dripless Shaft Seal 5", 7 1/4" Stern Tube

The PSS 02-500-714 Dripless Shaft Seal is a high-performance mechanical face seal designed to provide reliable protection against water ingress. This innovative shaft seal maintains constant contact between its components, ensuring a secure seal even with variable movement caused by propeller thrust.
- Type: B PSS Shaft Seal
- Sealing Mechanism: Mechanical face seal with a stainless-steel rotor and carbon flange
- Attachment: Stationary carbon flange attached to the bellows with hose clamps; bellows secured over the Stern tube with hose clamps
- Pre-load: Stainless-steel rotor compresses the bellows, ensuring constant contact between rotor and flange
- Misalignment Compensation: Carbon flange floats around the shaft to accommodate misalignment and vibration
- Sealing: Stainless-steel rotor sealed to the shaft with two O-rings
- Temperature Limits: -13°F to 425°F (-25°C to 220°C)
- Pressure Limits: 50 PSI (3.5 BAR)
- Shaft RPM Limits: 7,000 RPM
- Carbon Graphite Tolerance: Lapped to 4 HLB (0.000044" tolerance)
- 316SS / Nitronic 50 Finish: Faced to 9-12 Ra
- Bellows Material: Mandrel formed silicone / fabric
Specifications:
- Part #: 02-500-714
- Shaft Diameter (A): 5"
- Stern Tube Diameter (B): 7-1/4" to 7-3/8"
- Approximate Length (C): 13.42"
- Approximate Compression: 1" to 1-1/4"
- Rotor Diameter (D): 7.875"
- Stern Cuff Length (E): 2.5"
