Article
BB-02-150M-714
€ 10.322,95
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+
The PSS 02-150M-714 Dripless Shaft Seal is a mechanical face seal designed for marine applications, featuring a stainless-steel rotor and a stationary carbon flange that create a reliable sealing surface. It accommodates movement from propeller thrust and compensates for misalignment and vibrations, ensuring durability. The rotor is sealed to the shaft with O-rings that reduce wear, and it operates effectively within temperature limits of -13°F to 425°F, pressure limits of 50 PSI, and shaft RPM limits of 7,000 RPM.
- Description
- Ask a Question
-

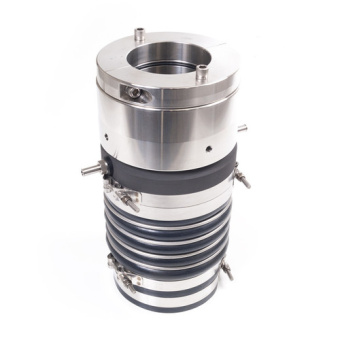

PSS 02-150M-714 - Dripless Shaft Seal 150 mm, 7 1/4" Stern Tube
The PSS 02-150M-714 Dripless Shaft Seal is an advanced mechanical face seal designed for marine applications. Its innovative design features a stainless-steel rotor and a stationary carbon flange, creating a reliable sealing surface. The carbon flange is securely attached to the bellows and fits over the stern tube, ensuring a tight seal with the help of hose clamps. The rotor compresses the bellows, maintaining constant contact between the two flat surfaces, which allows for compensation of movement caused by propeller thrust.
With the ability to accommodate misalignment and vibrations, the carbon flange is over-bored to the shaft diameter allowing it to float, enhancing durability. The rotor is sealed to the shaft using two O-rings that rotate with the assembly, ensuring minimal wear during operation.
Temperature Limits: -13°F to 425°F (-25°C to 220°C)
Pressure Limits: 50 PSI (3.5 BAR)
Shaft RPM Limits: 7,000 RPM
Carbon Graphite: Lapped to 4 HLB (0.000044" tolerance)
316SS / Nitronic 50: Faced to 9-12 Ra
Bellows Material: Mandrel formed silicone / fabricSpecifications:
Part #: 02-150M-714
Shaft Diameter (A): 150 mm
Stern Tube Diameter (B): 7-1/4" to 7-3/8"
Approx. Length (C): 13.9195"
Approx. Compression: 1" to 1-1/4"
Rotor Diameter (D): 8.875"
Stern Cuff Length (E): 2.5" -
