BB-02-140M-712
€ 9.456,13
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+
The PSS 02-140M-712 Dripless Shaft Seal is a mechanical face seal designed for marine applications, featuring a stainless-steel rotor and a stationary carbon flange that create a reliable sealing surface. The rotor compresses the bellows, maintaining constant contact and allowing for adjustments due to propeller thrust, while the carbon flange floats around the shaft to compensate for misalignment and vibration. It operates effectively within a temperature range of -13°F to 425°F and is sealed with two rotating O-rings for durability.
- Description
- Ask a Question
-

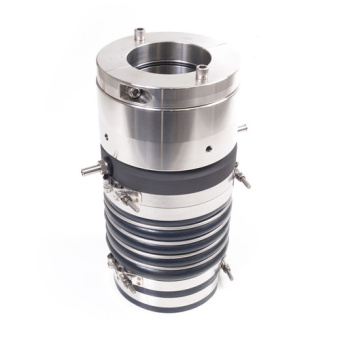

PSS 02-140M-712 - Dripless Shaft Seal 140 mm, 7 1/2" Stern Tube
The PSS 02-140M-712 Dripless Shaft Seal is designed for superior performance in marine applications. This mechanical face seal utilizes a unique system to ensure a reliable and leak-free operation.
Constructed with a stainless-steel rotor and a stationary carbon flange, the sealing surface is created between their flat surfaces. The carbon flange is securely attached to the bellows, which fits over the Stern tube and is held in place with hose clamps. The rotor compresses the bellows, maintaining constant contact with the carbon flange and enabling the seal to adjust to the dynamic movements caused by propeller thrust. This design also allows the carbon flange to float around the shaft, compensating for misalignment and vibration.
The rotor is sealed to the shaft using two O-rings that rotate with it, ensuring minimal wear during use. This robust construction provides durability and reliability under various conditions.
Temperature Limits: -13°F to 425°F (-25°C to 220°C)
Pressure Limits: 50 PSI (3.5 BAR)
Shaft RPM Limits: 7,000 RPM
Carbon Graphite: Lapped to 4 HLB (0.000044" tolerance)
316SS / Nitronic 50: Faced to 9-12 Ra
Bellows Material: Mandrel formed silicone / fabricSpecifications:
Part #: 02-140M-712
Shaft Diameter (A): 140mm
Stern Tube Diameter (B): 7-1/2" to 7-5/8"
Approx. Length (C): 13.42"
Approx. Compression: 1" to 1-1/4"
Rotor Diameter (D): 7.875"
Stern Cuff Length (E): 2.5" -
