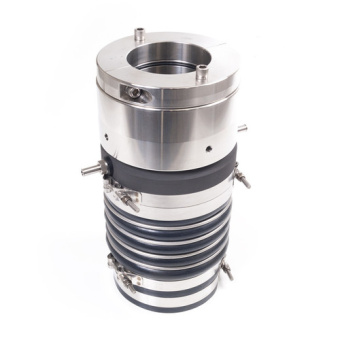

PSS 02-115M-534 -Dripless Shaft Seal 115 mm, 5 3/4" Stern Tube

Article BB-02-115M-534

€ 7.738,28

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The PSS 02-115M-534 Dripless Shaft Seal features a mechanical face seal design, utilizing a rotating stainless-steel rotor and a stationary carbon flange to create a reliable seal for stern tubes. The carbon flange allows for movement and compensates for misalignment, while two O-rings ensure minimal wear during operation. With temperature limits ranging from -13°F to 425°F, pressure limits of 3.5 BAR, and a shaft speed limit of 7,000 rpm, this seal is built for durability and efficiency in marine applications.

Description
Ask a Question

PSS 02-115M-534 - Dripless Shaft Seal 115 mm, 5 3/4" Stern Tube

The PSS 02-115M-534 Dripless Shaft Seal is engineered for reliable performance in marine applications. This innovative product provides a robust solution for sealing the stern tube, ensuring durability and efficiency.

The Type B PSS Shaft Seal utilizes a mechanical face seal design, where the sealing surface is formed between the flat surfaces of a rotating stainless-steel rotor and a stationary carbon flange. The carbon flange, securely attached to the bellow with hose clamps, fits over the stern tube, while the rotor compresses the bellow, maintaining constant contact between the two surfaces. This design allows the shaft seal to accommodate variable movements caused by propeller thrust.

The carbon flange is over-bored to the shaft diameter, allowing it to "float" and effectively handle misalignment and vibration. Sealing is achieved through two O-rings recessed into the collar, which rotate with the shaft and rotor, ensuring minimal wear during operation.

Specifications:
- Temperature Limits: -13°F to 425°F (-25°C to 220°C)
- Pressure Limits: 3.5 BAR (50 PSI)
- Shaft Speed Limits: 7,000 rpm
- Carbon-Graphite: Lapped to 4 HLB (0.00000044" tolerance)
- 316SS / Nitronic 50: Towards 9 Ra
- Bellows Material: Thorn shaped silicone/fabric
