PSS 02-110M-634 - Dripless Shaft Seal 110 mm, 6 3/4" Stern Tube

Article BB-02-110M-634

€ 7.312,75

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The PSS 02-110M-634 Dripless Shaft Seal is a reliable mechanical face seal that prevents leaks in marine applications. It features a stainless-steel rotor and a stationary carbon flange, allowing for constant contact to accommodate movement from propeller thrust. Designed to float around the shaft, it effectively handles misalignment and vibrations, while recessed O-rings minimize wear. The seal operates within temperature limits of -13°F to 425°F and pressure limits of 3.5 BAR, making it suitable for various conditions.

Description
Ask a Question

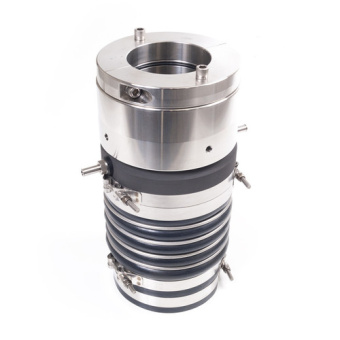

PSS 02-110M-634 - Dripless Shaft Seal 110 mm, 6 3/4" Stern Tube

The PSS 02-110M-634 Dripless Shaft Seal is designed for reliable performance in marine applications. This mechanical face seal features a unique design that effectively prevents leaks while accommodating the movement of the stern tube.

The Type B PSS Shaft Seal utilizes a mechanical face seal, where the sealing surface is formed between the flat surfaces of a rotating stainless-steel rotor and a stationary carbon flange. The carbon flange is securely attached to the bellow's front side with hose clamps, while the back end fits over the stern tube and is also secured with hose clamps. The stainless-steel rotor is mounted on the shaft in front of the carbon flange, compressing the bellow before attachment with set-screws. This pre-load ensures constant contact between the rotor and carbon flange, allowing the seal to adjust for any fore and aft movement caused by propeller thrust.

The carbon flange is engineered to float around the shaft diameter, accommodating misalignment and vibrations effectively. The stainless-steel rotor is sealed to the shaft using two recessed O-rings that rotate with the assembly, minimizing wear during operation.
- Temperature Limits: -13°F to 425°F (-25°C to 220°C)
- Pressure Limits: 3.5 BAR (50 PSI)
- Shaft Speed Limits: 7,000 rpm
- Carbon-Graphite: Lapped to 4 HLB (0.00000044" tolerance)
- 316SS / Nitronic 50: Towards 9 Ra
- Bellows Material: Thorn shaped silicone/fabric
