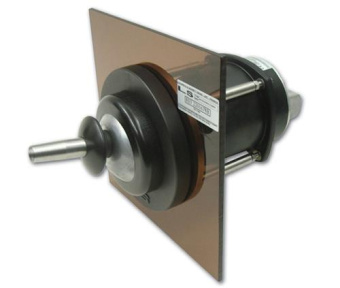

Lecomble & Schmitt Steering Pump TILT HB5-pomp 35cc

SKU: EX 2203669

€ 1.254,13

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Lecomble & Schmitt HB 5 Tilt hydraulic pump is a compact, steerable pump integrated into the steering system, allowing for a wheel adjustment range of -24° to +24°. It features non-return and pressure relief valves for safety and efficiency, requiring 3.4 to 6.8 turns of the steering wheel for full movement depending on the associated LS hydraulic cylinder. With a flow rate of 35 cc/t, a weight of 4.9 kg, and a maximum wheel diameter of 500 mm, it is designed for durability and ease of maintenance.

Description
Ask a Question

Lecomble & Schmitt Steering Pump TILT HB5-pomp 35cc 2203669

This steerable hydraulic pump is the most compact on the market, integrated directly into the steering system (Tilt). The steering wheel can be adjusted from -24° to +24° (5 positions). The HB 5 Tilt pump – 35 CT features non-return valves to prevent unwanted movement of the cylinder(s) and pressure relief valves to protect against abnormal pressure build-up. Depending on the associated LS hydraulic cylinder model, a full movement from port to starboard requires between 3.4 and 6.8 turns of the steering wheel.
- Product Number: 2203669
- Unit of Sale: 1 Piece
- EAN Code: 8720193082523
- Brand: Lecomble & Schmitt
- Flow Rate: 35 cc/t
- Minimum Size of Tubing: 8x10 mm
- Weight: 4.9 kg
- Volume: 400 cc
- Max. Wheel Diameter: 500 mm
