SKU:
CN F-0029976
€ 119.665,04
1-2 weeks delivery time
-
+
The Fischer Panda ePanda Series HV Shaft S100-12 with two motors provides up to 200 kW of mechanical power, making it suitable for larger yachts and commercial vessels. It features water-cooled components, hybrid engine compatibility, and works with various battery types or DC generators, offering high reliability.
- Description
- Ask a Question
-

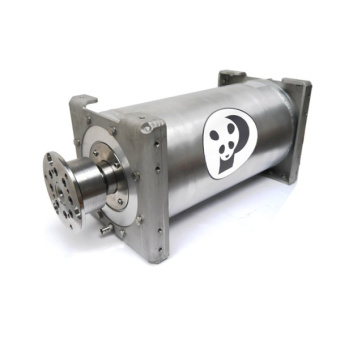

ePanda Series HV - Shaft - S100-12 - 2 Drives
- Model: Fischer Panda 360 V / 420 V "HV" High Voltage Drive System
- Power: Up to 100 kW
- Voltage: 420 V DC
- RPM: 1200
- Torque: 796 Nm
- Weight: 334 kg
- Drive Type: Parallel-Hybrid Drive with Dual Electric Motors
- Applicable Vessel Size: Yachts with 40 t Displacement or More
- Compatibility: Can Be Paired with Large Combustion Engines
- Battery Compatibility: Works with Almost All Battery Types
- Cooling System: Water-Cooled Components
- Application: Small Public Transport Ferries, Commercial Work Vessels, Private Yachts
- Design: S1 Certified Engines, Double-Walled Aluminum Housing with Integrated Thrust Bearing
- Unique Feature: DE-SHAFT Shaft Versions Designed for Vessel Mounting
Drives Specifications
- Number of Drives: 2
- Power per Motor: 100 kW
- RPM: 1200
- Torque: 796 Nm
- Weight: 334 kg
- Voltage: 420 V
-
