SKU:
CN F-0029935
€ 65.809,04
1-2 weeks delivery time
-
+
The ePanda Series 30.0 - Shaft - S20-6 (Water-Cooled) with two drives doubles the power, providing 20 kW per motor and 320 Nm of torque. This dual-drive system offers high efficiency, regenerative capabilities, and a silent, low-maintenance operation with permanent magnet technology. With a 48V system and water cooling, it is well-suited for larger vessels requiring optimal performance in challenging marine conditions.
- Description
- Ask a Question
-

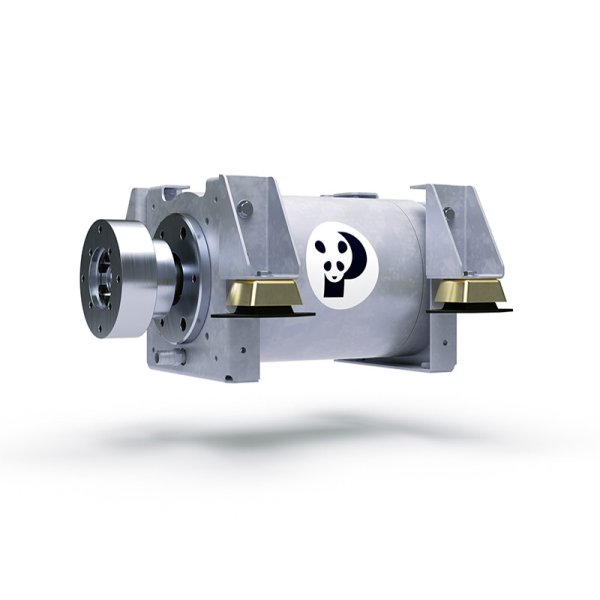

ePanda Series 30.0 - Shaft - S20-6 (Water-Cooled) - 2 Drives
This Fischer Panda motor offers an enhanced solution with two drives for increased power and performance, ideal for larger vessels requiring more propulsion power. It shares the same high-efficiency features of the single-drive model, but with double the power.
- Permanent magnet technology
- Highly efficient
- Brushless motor
- Stainless steel/aluminum housing for durability
- High torque, even at low speeds
- Easy to maintain and ideal for commercial use
- Regenerative capability
- Water cooling – no oil used for cooling
- Maximum torque from the first revolution
- Silent operation with no gears
- 48V low voltage system
- Integrated release bearing for smoother operation
- All performance ratings provided on the axis
- Double-walled aluminum housing with integrated thrust bearing for water cooling
Technical Specifications:
- Drives: 2
- Power per motor: 20 kW
- RPM: 600
- Torque: 320 Nm
- Weight: 306 kg
- Voltage: 48V
-
