SKU:
CN F-0029934
€ 32.897,04
1-2 weeks delivery time
-
+
The ePanda Series 30.0 - Shaft - S20-6 (Water-Cooled) with one drive delivers 20 kW of power, 600 rpm, and 320 Nm of torque. Its efficient, brushless motor design ensures silent operation and minimal maintenance. The system uses a 48V low-voltage setup with water cooling and no oil, making it ideal for commercial maritime use with high torque at low speeds and long-lasting reliability.
- Description
- Ask a Question
-

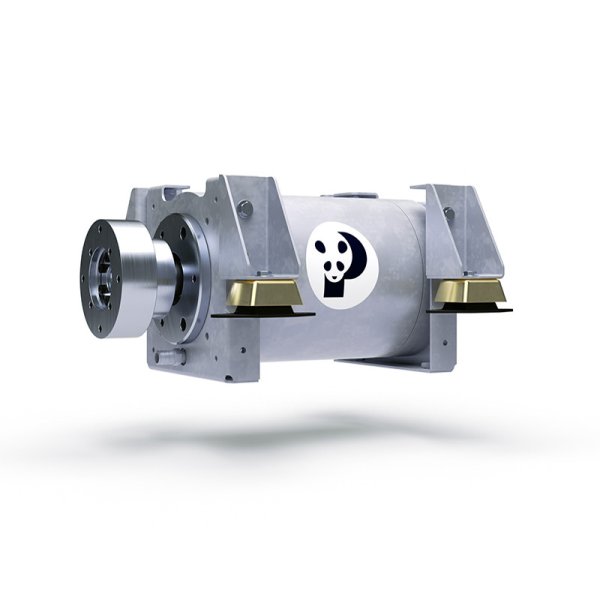

ePanda Series 30.0 - Shaft - S20-6 (Water-Cooled) - 1 Drive
This Fischer Panda product is designed for marine applications, offering a reliable and efficient propulsion system. It is equipped with a shaft motor that operates silently and efficiently, ensuring optimal performance even at low speeds.
- Permanent magnet technology
- Highly efficient
- Brushless motor
- Stainless steel/aluminum housing for durability
- High torque, even at low speeds
- Easy to maintain and ideal for commercial use
- Regenerative capability
- Water cooling – no oil used for cooling
- Maximum torque from the first revolution
- Silent operation with no gears
- 48V low voltage system
- Integrated release bearing for smoother operation
- All performance ratings provided on the axis
- Double-walled aluminum housing with integrated thrust bearing for water cooling
Technical Specifications:
- Drives: 1
- Power per motor: 20 kW
- RPM: 600
- Torque: 320 Nm
- Weight: 153 kg
- Voltage: 48V
-
