SKU:
CN F-0029933
€ 62.817,04
1-2 weeks delivery time
-
+
The ePanda Series 30.0 - Shaft - S20-12 (Water-Cooled) with two drives provides twice the power with 20 kW per motor and 160 Nm of torque. This dual-drive system offers the same high efficiency and low-maintenance operation as the single-drive version, making it suitable for larger vessels. With a 48V low voltage system, regenerative features, and water cooling, it ensures optimal performance in demanding commercial marine environments.
- Description
- Ask a Question
-

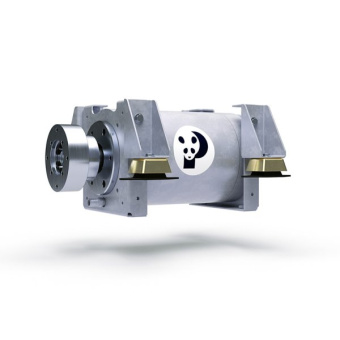

ePanda Series 30.0 - Shaft - S20-12 (Water-Cooled) - 2 Drives
This Fischer Panda advanced dual-drive model offers enhanced performance and efficiency, making it a top choice for demanding maritime environments.
- Permanent magnet technology for high efficiency
- Brushless motor for smooth, low-maintenance operation
- Stainless steel and aluminum housing for durability
- High torque available, even at low speeds
- Easy maintenance, ideal for commercial uses
- Regenerative system for increased energy efficiency
- Cooling system that doesn't require oil
- Maximum torque from the first revolution
- Silent operation with no gears
- 48 Volt system, ensuring low voltage
- Integrated release bearing for smooth function
- All performance ratings directly applied to the axis
- Double-walled aluminum housing with water cooling and integrated thrust bearing
- Power: 2 Drives
- Power per motor: 20 kW
- RPM: 1200
- Torque: 160 Nm
- Weight: 195 kg
- Voltage: 48V
-
