SKU:
CN F-0029907
€ 64.313,04
1-2 weeks delivery time
-
+
The ePanda Series 30.0 - POD U20-12 with two drives is built for demanding commercial environments, providing high efficiency and exceptional torque. Its brushless motor design, coupled with permanent magnet technology, ensures reliable performance. With a 48-volt system and eco-friendly cooling, this dual-drive motor is ideal for demanding marine applications, delivering silent operation and easy integration with existing systems.
- Description
- Ask a Question
-

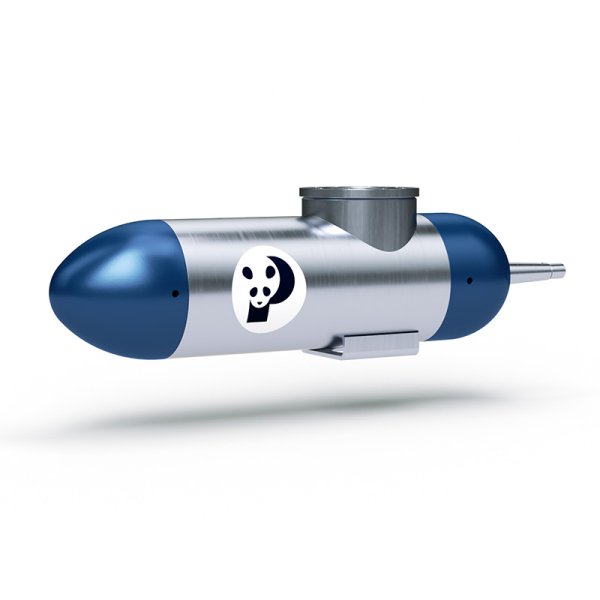

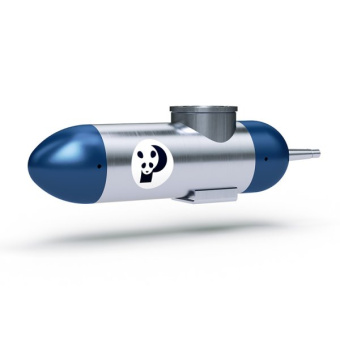

ePanda Series 30.0 - POD - U20-12 (Water-Cooled) - 2 Drives
The ePanda Series 30.0 - POD U20-12 motors are designed for reliable and efficient performance in demanding environments. These water-cooled, pod-powered submersible motors offer exceptional torque and durability, making them perfect for commercial applications.
- High-Quality Engines from Fischer Panda: Built with precision for long-lasting performance.
- Permanent Magnet Technology: Provides high efficiency and reliability in a compact form.
- Highly Efficient: Delivers maximum power with minimal energy consumption.
- Brushless Motor: Low-maintenance and highly durable.
- Stainless Steel/Aluminum Housing: Corrosion-resistant and tough enough for harsh marine conditions.
- High Torque at Low Speeds: Ensures efficient operation from the first turn, even at lower speeds.
- Easy to Maintain: Designed for minimal maintenance with high durability, suitable for commercial applications.
- Regeneration: Efficiently recovers energy during braking.
- No Oil Used for Cooling: Provides a clean, efficient cooling system without the need for oil.
- Maximum Torque from the First Turn: Delivers immediate and powerful performance.
- Silent Operation: Gearless design ensures quiet functioning.
- 48 Volt Low Voltage: Safe, low voltage operation suitable for marine environments.
- Integrated Release Bearing: Reduces wear and improves reliability.
- All Performance Ratings on the Axis: Optimized for maximum efficiency and power directly on the axis.
- Sealing Ring: Features a 3-stage sealing ring for added safety and reduced maintenance.
- Mountable on Rudder or Steering System: Can be installed on existing systems without the need for additional cooling systems.
- Attachments Available for Various Hull Shapes: Fischer Panda offers different mounting options for various vessel designs.
Performance Specifications
- Drives: 2
- Power per Motor: 20 kW
- RPM: 1200 rpm
- Torque: 160 Nm
- Weight: 270 kg
- Voltage: 48 V
-
