SKU:
CN F-0029930
€ 23.921,04
1-2 weeks delivery time
-
+
The ePanda Series 15.0 - Shaft - S10-6 (Water-Cooled) with one drive is designed for demanding commercial applications, offering high efficiency and durability. With 1 kW of power, 600 rpm, and 160 Nm of torque, this model operates silently and requires minimal maintenance, thanks to its brushless design and regenerative capabilities. It uses a 48V system and features water cooling without oil, ideal for long-term, low-maintenance operation.
- Description
- Ask a Question
-

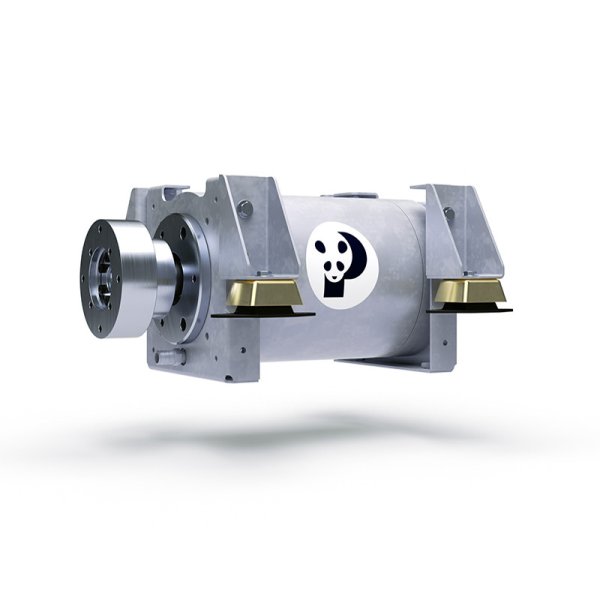

ePanda Series 15.0 - Shaft - S10-6 (Water-Cooled) - 1 Drive
This Fischer Panda high-performance shaft motor is designed for demanding commercial applications and offers a variety of features that make it stand out in the industry.
- Permanent magnet technology for superior performance
- Highly efficient and brushless design
- Stainless steel and aluminum housing for durability
- High torque output, even at low speeds
- Easy to maintain, ideal for commercial applications
- Regeneration feature for enhanced energy efficiency
- No oil used for cooling, reducing maintenance needs
- Maximum torque from the very first revolution
- Silent operation without gears
- 48 Volt system for low-voltage performance
- Integrated release bearing for smooth operation
- All performance ratings are provided directly on the axis
- Double-walled aluminum housing with water-cooling and integrated thrust bearing for robust performance in marine environments
- Power per motor: 1 kW
- Speed: 600 RPM
- Torque: 160 Nm
- Weight: 98 kg
- Voltage: 48 V
-
