SKU:
CN F-0029929
€ 40.377,04
1-2 weeks delivery time
-
+
The ePanda Series 15.0 - Shaft - S10-12 (Water-Cooled) with two drives offers double the power with the same reliable features as the single-drive version. This dual-drive system provides 10 kW of power per motor and 79 Nm of torque, ensuring smooth, silent operation with regenerative capabilities. The water-cooled design includes durable stainless steel/aluminum housing, and the system operates at 48V with no oil for cooling, making it perfect for commercial use.
- Description
- Ask a Question
-

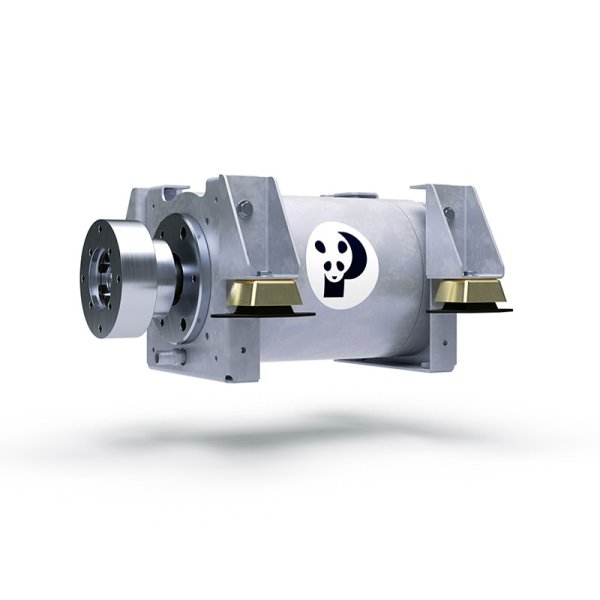

ePanda Series 15.0 - Shaft - S10-12 (Water-Cooled) - 2 Drives
The Fischer Panda ePanda Series 15.0, with dual drives, is designed to provide even more power and efficiency for marine applications, offering the same reliability with additional drive capacity.
- Permanent magnet technology
- Highly efficient and brushless design
- Stainless steel/aluminum housing for durability
- High torque at low speeds for optimal performance
- Easy to maintain, ideal for commercial applications
- Regenerative capabilities
- Oil-free cooling system
- Maximum torque from the first revolution
- Silent operation – no gears
- 48 Volt – low voltage for safety
- Integrated release bearing for smooth operation
- All performance ratings are measured on the axis
- Water-cooled double-walled aluminum housing with integrated thrust bearing
Technical Specifications:
- Drives: 2
- Power: 10 kW per motor
- RPM: 1200
- Torque: 79 Nm
- Weight: 156 kg
- Voltage: 48 V
-
