SKU:
CN F-0029928
€ 21.677,04
1-2 weeks delivery time
-
+
The ePanda Series 15.0 - Shaft - S10-12 (Water-Cooled) with one drive delivers efficient and silent operation with permanent magnet technology and a brushless motor design. It offers 10 kW of power, 1200 rpm, and 79 Nm of torque. The system features low-maintenance, regenerative capabilities, and a durable stainless steel/aluminum housing. Ideal for commercial applications, it operates at 48V and includes water cooling without the need for oil.
- Description
- Ask a Question
-

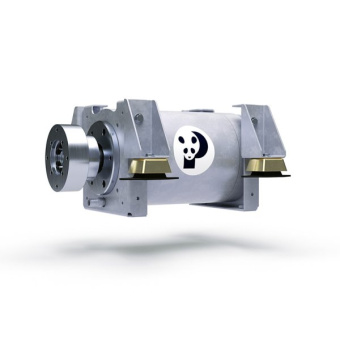

ePanda Series 15.0 - Shaft - S10-12 (Water-Cooled) - 1 Drive
The Fischer Panda ePanda Series 15.0 shaft motor is designed for reliable and efficient operation in marine environments, delivering outstanding performance with a range of advanced features.
- Permanent magnet technology
- Highly efficient and brushless design
- Stainless steel/aluminum housing for durability
- High torque at low speeds for optimal performance
- Easy to maintain, ideal for commercial applications
- Regenerative capabilities
- Oil-free cooling system
- Maximum torque from the first revolution
- Silent operation – no gears
- 48 Volt – low voltage for safety
- Integrated release bearing for smooth operation
- All performance ratings are measured on the axis
- Water-cooled double-walled aluminum housing with integrated thrust bearing
Technical Specifications:
- Drives: 1
- Power: 10 kW per motor
- RPM: 1200
- Torque: 79 Nm
- Weight: 74 kg
- Voltage: 48 V
-
