SKU:
BP 301-108-WH
$ 1.843,78
1-2 weeks delivery time
-
+
The Lopolight 301-108-WH is a white ceramic-coated green starboard navigation light providing 3NM visibility. It features horizontal mounting, a down-only cable orientation, DNV certification, and robust materials for reliable long-term operation on vessels over 50 meters.
- Description
- Ask a Question
-

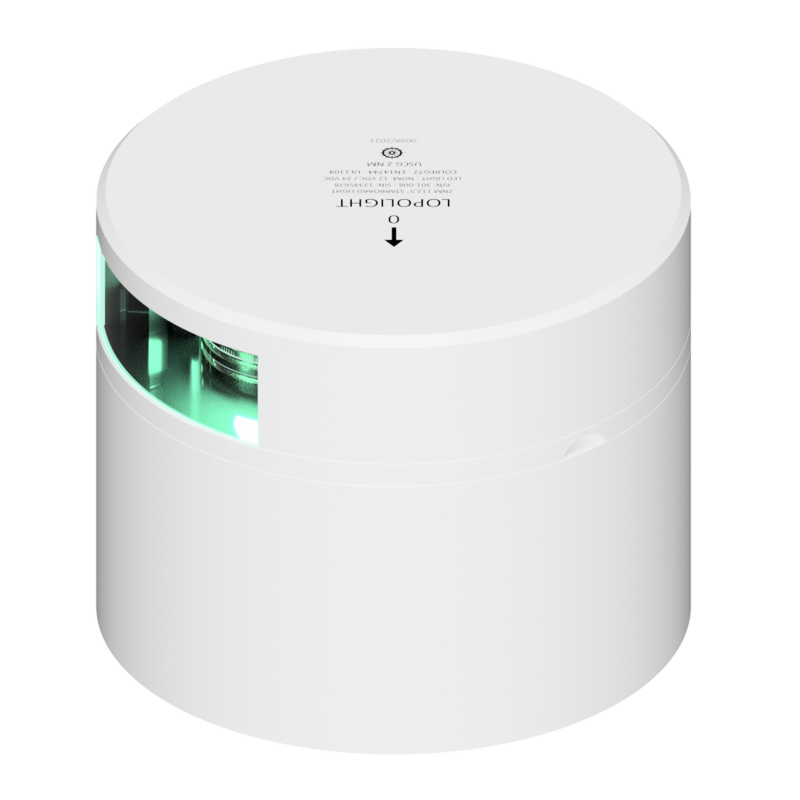

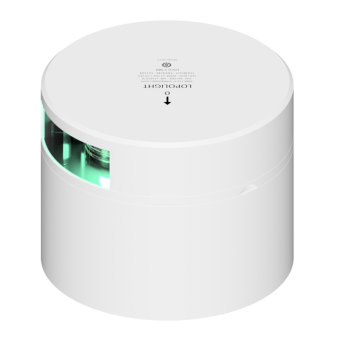

Lopolight 301-108-WH - Navigation Light 3NM 112,5° Green, Starboard, White Ceramic Coated
Engineered for reliability and durability, this navigation light provides clear green illumination for starboard navigation with exceptional visibility up to 3 nautical miles.
- Mount Base: Aluminium, white
- Cable Orientation: Down only
- Standard Package: Black PE baseplate included
- Optional Upgrade: White ceramic coated baseplate
- Model Number: 301-108-WH
- Light Color: Green
- Dimensions (Metric): Ø92,5mm x 74,5mm
- Dimensions (Imperial): Ø3.6" x 2.9"
- Certification: Wheelmarked (DNV certified)
- Intensity: >15cd
- Approved Standards: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility Range: 3 nautical miles
- Included in Package: 1 Navigation light, 2 Mounting screws (M6 * 8 mm), Installation guide
- Operating Temperature: -25°C to 55°C
- Mounting Orientation: Horizontal
- Materials: Ceramic coated white aluminum, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- EAN: 5704438039483
- IP Rating: IP68
- Power Draw: 3 W
- UPC Code: 879343039615
- Connection: Plug connector
- Current Consumption: 183 mA @ 12VDC, 110 mA @ 24VDC
- Recommended Vessel Size: Over 50 meters
- Minimum Feed Wire Gauge: 0.5mm² AWG22
- Weight: 1.01 Kg / 35.62 Oz
-
