SKU:
BP 301-105ST-WH
$ 3.352,36
1-2 weeks delivery time
-
+
The Lopolight 301-105ST-WH is a white-coated navigation light designed for large vessels, offering durable performance with a ceramic finish and proven visibility. It features a white aluminum mount base, cable down only, a standard black PE baseplate, optional white ceramic coated baseplate, and provides 3NM visibility with an intensity greater than 15cd. Operating voltage is 10-32VDC, with IP68 protection, and it is certified by DNV and approved to multiple maritime standards.
- Description
- Ask a Question
-

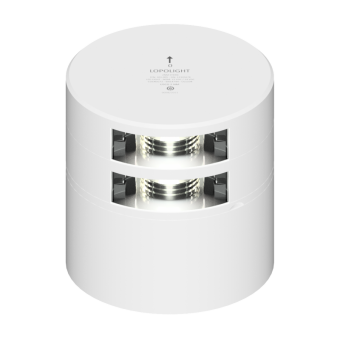

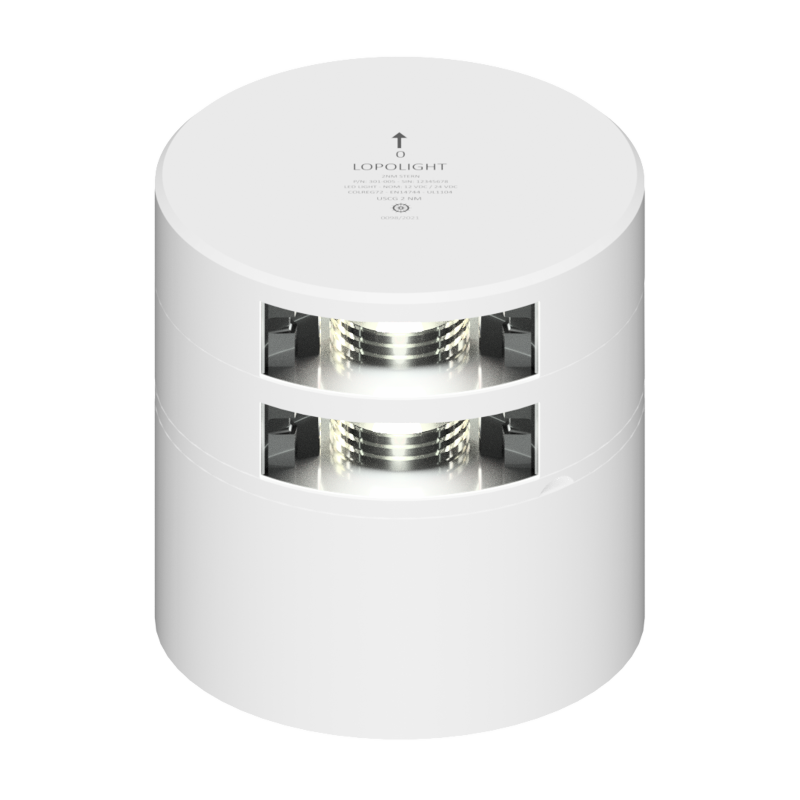

Lopolight 301-105ST-WH - Navigation Light 3NM 135° White, Stern, Double, White Coated
This white-coated navigation light provides durable performance for large vessels, combining a ceramic finish with proven visibility and reliability.
- White ceramic finish
- Aluminum mount base, white
- Cable down only
- Included standard: Black PE baseplate
- Optional: White ceramic coated baseplate
- Number: 301-105ST-WH
- Light Color: White
- Dimensions (metric): Ø92,5mm x 96,5mm
- Dimensions (imperial): Ø3.6" x 3.8"
- Certification: Wheelmarked - based on DNV certification
- Intensity: >15cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 3nm
- Included in Package: 1 Navigation light
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Ceramic coated white aluminum, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- EAN: 5704438039476
- IP Rating: IP68
- Power Draw: 2 W
- UPC Code: 879343039608
- Connection: Plug connector
- Current Consumption (mA @ 12VDC): 130
- Current Consumption (mA @ 24VDC): 72
- Vessel Size: Over 50M
- Min. Feed Wire Gauge: 0.5mm² AWG22
- Weight: 1.32 Kg / 46.56 Oz
-
