SKU:
BP 301-105ST-PRO-I
$ 3.558,76
1-2 weeks delivery time
-
+
The Lopolight 301-105ST-PRO-I is a white double stern ice-class navigation light with a built-in de-icing function and horizontal mounting. It provides 3nm visibility, over 15cd intensity, DNV certification, and is suitable for vessels over 50 meters operating in extreme cold conditions.
- Description
- Ask a Question
-

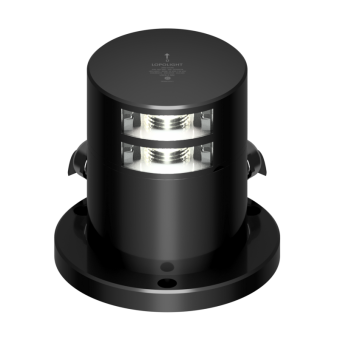

Lopolight 301-105ST-PRO-I - Navigation Light 3NM 135° White, Stern, Double, Ice-Class, Black
This navigation light features a built-in de-icing function for extreme cold conditions, making it ideal for vessels operating in icy waters. Horizontal mounting ensures stable installation.
- Number: 301-105ST-PRO-I
- Light Color: White
- Dimensions (metric): Ø92,5mm x 125,5mm
- Dimensions (imperial): Ø3.6" x 4.9"
- Certification: DNV
- Intensity: >15cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 3nm
- Included in Package: 1 Navigation light, 2 Mounting screws (M6 x 8mm), Installation guide
- Operating Temperature: -60°C to 55°C
- Mounting: Horizontal, on 400-037 POM base (IP68)
- Cable Direction: Side, including HDPE base plate
- Cable Glands: 7-13mm (9/32"–1/2") cable diameter
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 20-32VDC
- IP Rating: IP68
- Power Draw: 2W (normal), 19W (de-icing mode)
- Connection: Plug connector
- Current Consumption: 130 mA @ 12VDC, 72 mA @ 24VDC
- Vessel Size: Over 50M
- Minimum Feed Wire Gauge: 1.5mm² AWG18
- Weight: 1.4 Kg / 49.38 Oz
- EAN: 5704438014473
- UPC Code: 879343014476
-
