SKU:
BP 301-105ST-PRO-I-EX
$ 4.687,30
1-2 weeks delivery time
-
+
The Lopolight 301-105ST-PRO-I-EX is a white double stern navigation light with built-in de-icing and ATEX certification for Zones 1 & 2. It provides 3nm visibility, over 15cd intensity, DNV certification, and horizontal mounting, designed for reliable performance on vessels over 50 meters in extreme conditions.
- Description
- Ask a Question
-

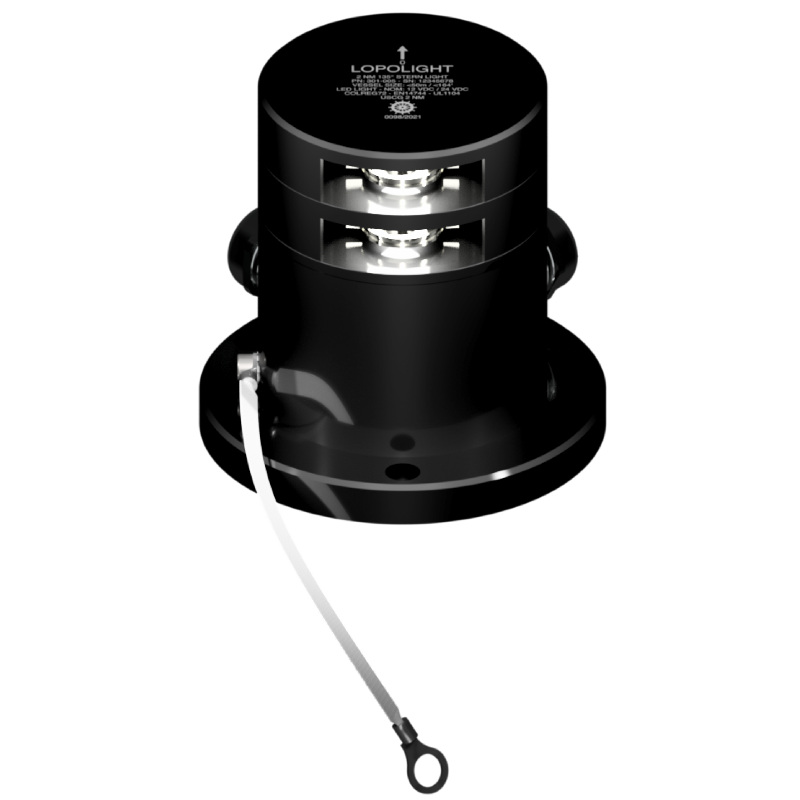

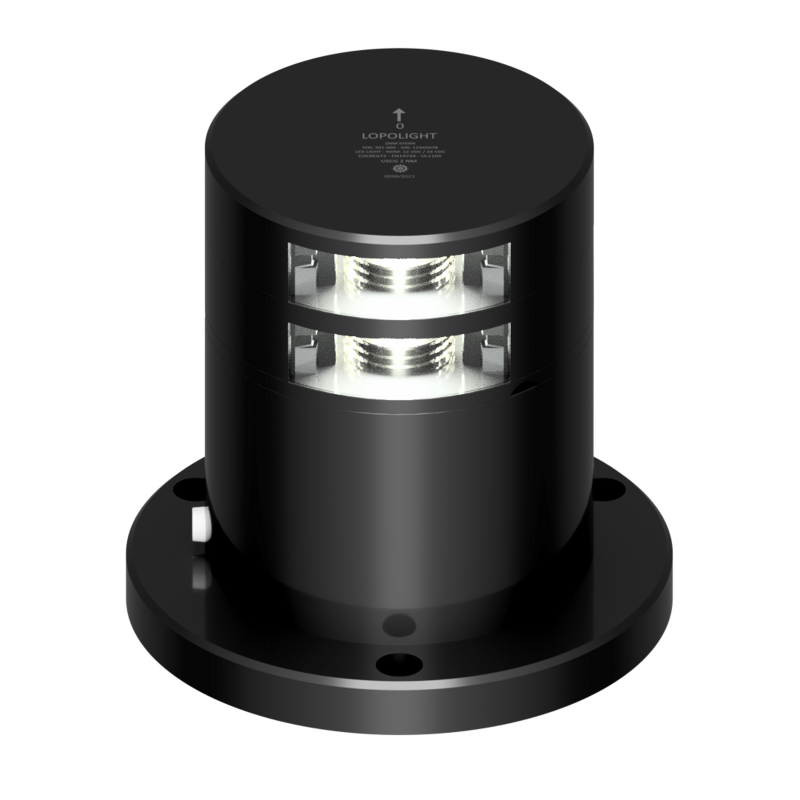

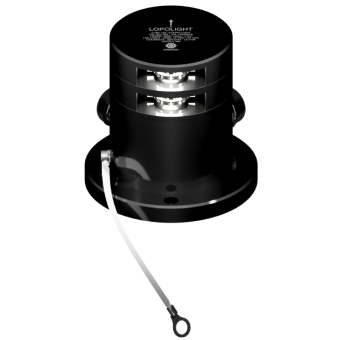

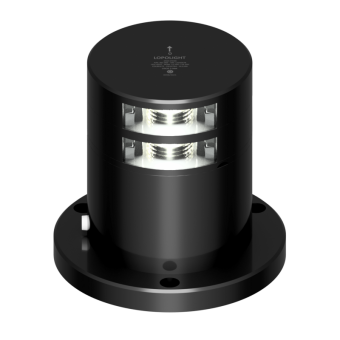

Lopolight 301-105ST-PRO-I-EX - Navigation Light 3NM 135° White, Stern, Double, Ex 1&2, Ice-Class
This navigation light is designed for large vessels, offering reliable visibility in extreme conditions with built-in de-icing and ATEX certification.
- Certified for use in ATEX Zone 1 & 2
- Built-in De-icing function
- Horizontally mounted on 400-037 EX/MIL aluminum base
- Cable direction side, includes HDPE base plate
- No cable glands or ground strap included
- Number: 301-105ST-PRO-I-EX
- Light Color: White
- Dimensions (metric): Ø92,5mm x 125,5mm
- Dimensions (imperial): Ø3.6" x 4.9"
- Certification: DNV, Dancert (Approved to: Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Intensity: >15cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 3nm
- Included in Package: 1 Navigation light, Installation guide
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- EAN: 5704438040700
- IP Rating: IP68
- Power Draw: 2 W
- UPC Code: 879343040833
- Connection: Plug connector
- Current Consumption (mA @ 12VDC): 130
- Current Consumption (mA @ 24VDC): 70
- Special Attributes: Ice-class Defroster included, IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Vessel Size: Over 50M
- Min. Feed Wire Gauge: 0.5mm² AWG22
- Weight: 1.62 Kg / 57.14 Oz
-
