SKU:
BP 301-105ST-PRO-EX
$ 3.348,08
1-2 weeks delivery time
-
+

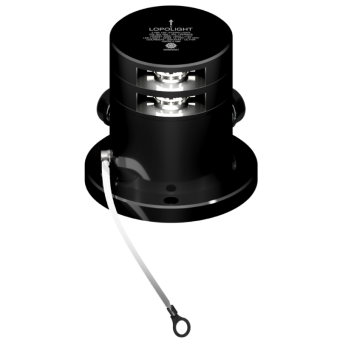

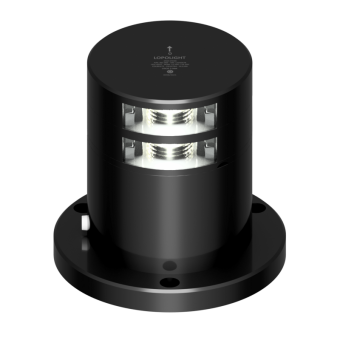

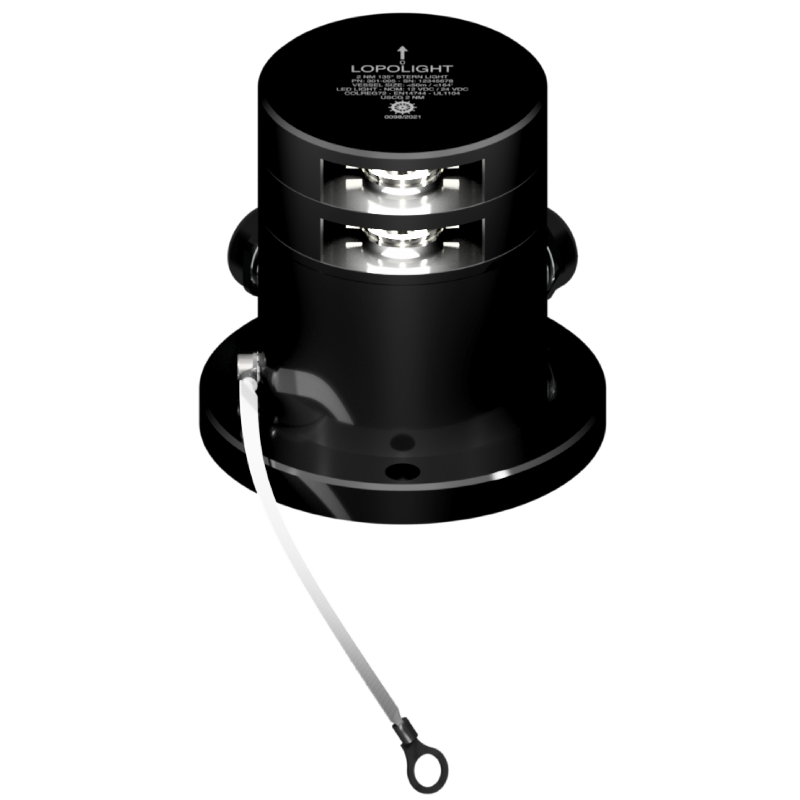

The Lopolight 301-105ST-PRO-EX is a white double stern navigation light with black horizontal mounting, certified for ATEX Zone 1 & 2. It provides 3nm visibility, over 15cd intensity, DNV approval, and robust construction for hazardous marine environments on vessels over 50 meters.
- Description
- Ask a Question
-
Lopolight 301-105ST-PRO-EX - Navigation Light 3NM 135° White, Stern, Double, Black, Ex Zone 1&2
Designed for safe marine navigation in hazardous environments, this navigation light is certified for ATEX Zone 1 & 2 and offers reliable performance on large vessels.
- Number: 301-105ST-PRO-EX
- Light Color: White
- Dimensions (metric): Ø92,5mm x 125,5mm
- Dimensions (imperial): Ø3.6" x 4.9"
- Certification: DNV, Dancert (Approved to: Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Intensity: >15cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 3nm
- Included in Package: 1 Navigation light, Installation guide
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal, on 400-037-B aluminum base (IP68)
- Cable Direction: Side, including HDPE base plate
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- IP Rating: IP68
- Power Draw: 2W
- Connection: Plug connector
- Current Consumption: 130 mA @ 12VDC, 70 mA @ 24VDC
- Special Attributes: IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Vessel Size: Over 50M
- Minimum Feed Wire Gauge: 0.5mm² AWG22
- Weight: 1.6 Kg / 56.43 Oz
- EAN: 5704438039063
- UPC Code: 879343039196
-
