SKU:
BP 301-105ST-B-RPM
$ 4.505,89
1-2 weeks delivery time
-
+
The Lopolight 301-105ST-B-RPM is a white double stern navigation light with black horizontal mounting, dimmable and monitored control, suitable for vessels over 50 meters. It provides 3nm visibility, over 15cd intensity, and DNV certification, operating between -25°C and 55°C.
- Description
- Ask a Question
-

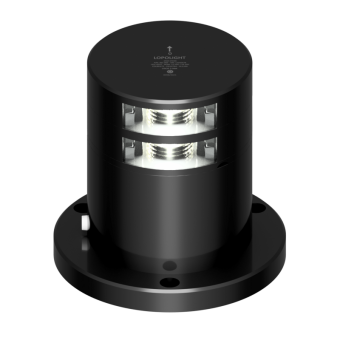

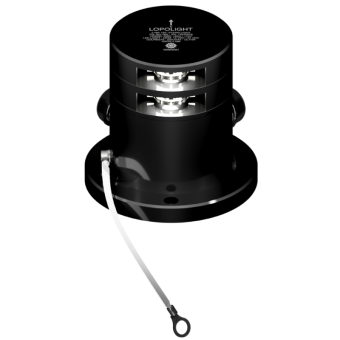

Lopolight 301-105ST-B-RPM - Navigation Light 3NM 135° White, Double Stern (Black), Horizontal Mount, Dimmable
High-quality navigation light suitable for vessels over 50 meters, offering reliable performance, dimmable control, and robust construction.
- Dimmable, monitored, and controllable
- Power and control via 2-lead connection
- Operating voltage: 10-32VDC (nominal 24VDC)
- Model number: 301-105ST-B-RPM
- Light color: White
- Dimensions: Ø92,5mm x 125,5mm (metric), Ø3.6" x 4.9" (imperial)
- Certified by DNV
- Approved according to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Light intensity: >15cd
- Visibility range: 3NM
- Operating temperature: -25°C to 55°C
- Horizontal mounting
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- IP rating: IP68
- Power draw: 1.7W
- Current consumption: 130mA @ 12VDC, 72mA @ 24VDC
- Connection: Plug connector
- Special attributes: Dimmable (NAVY/SAR only)
- Recommended vessel size: Over 50M
- Minimum feed wire gauge: 0.5mm² (AWG22)
- Weight: 1 Kg / 35.27 Oz
- EAN: 5704438014527
- UPC: 879343014520
-
