SKU:
BP 301-105ST-B-RPM-I
$ 7.079,99
1-2 weeks delivery time
-
+
The Lopolight 301-105ST-B-RPM-I is a white double stern ice-class navigation light with built-in heaters, dimmable control, and black horizontal mounting. It provides 3nm visibility, over 15cd intensity, and operates in extreme conditions from -60°C to 55°C, certified by DNV.
- Description
- Ask a Question
-

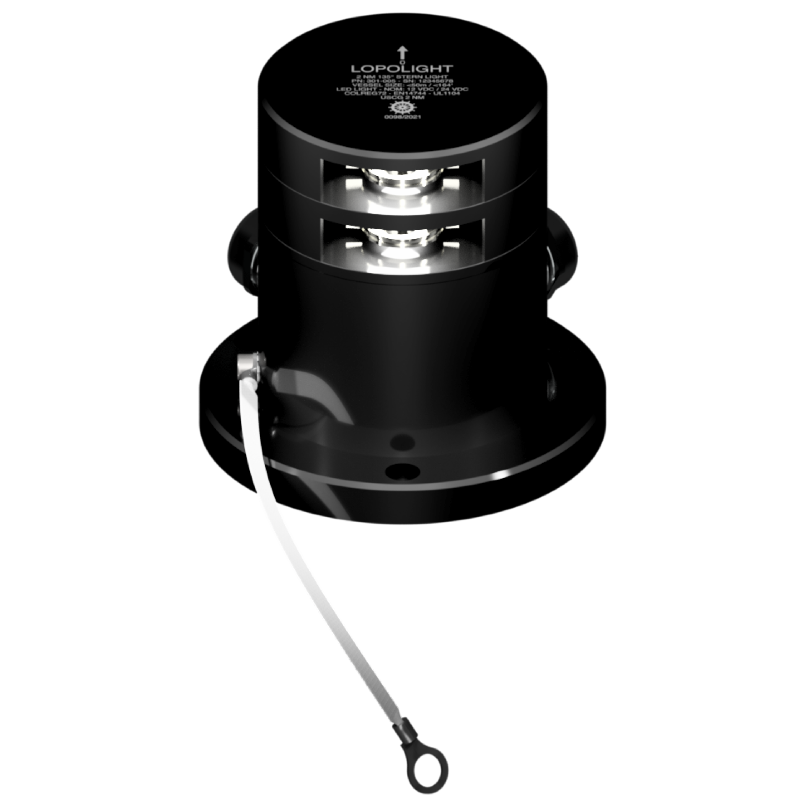

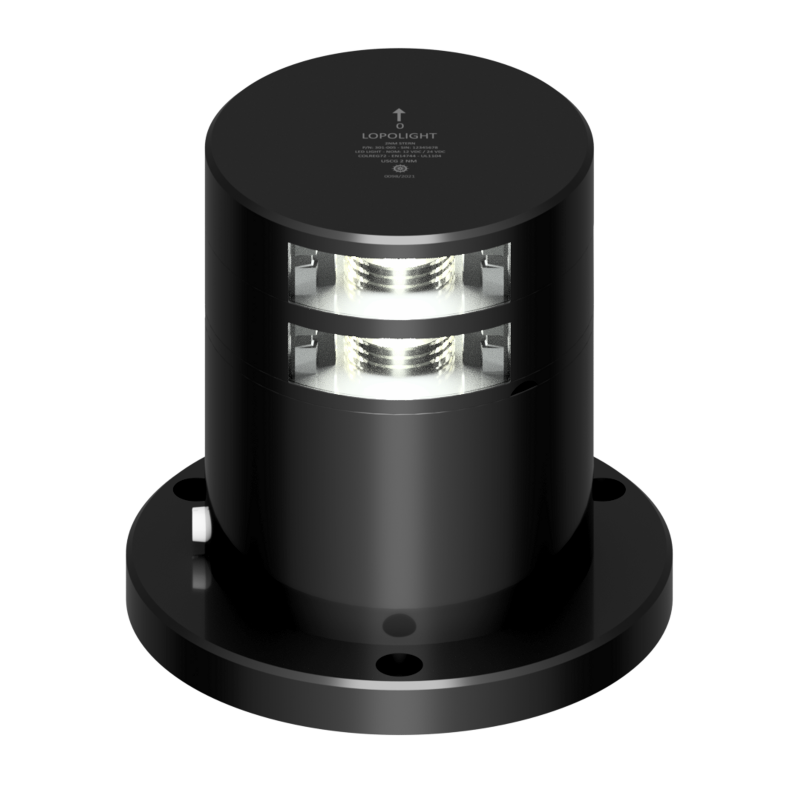

Lopolight 301-105ST-B-RPM-I - Navigation Light 3NM 135° White, Double, Dimmable, Ice-Class, Black
Advanced ice-class navigation light designed for extreme conditions, providing defrosting capability, dimmable control, and durability for large vessels.
- Dimmable, monitored, and controllable
- Built-in ice-class heaters
- Power and control via 2-lead connection
- Operating voltage: 10-32VDC (nominal 24VDC)
- Model number: 301-105ST-B-RPM-I
- Light color: White
- Dimensions: Ø92,5mm x 125,5mm (metric), Ø3.6" x 4.9" (imperial)
- Certified by DNV
- Approved according to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Light intensity: >15cd
- Visibility range: 3NM
- Operating temperature: -60°C to 55°C
- Horizontal mounting
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- IP rating: IP68
- Power draw: 1.7W
- Current consumption: 130mA @ 12VDC, 72mA @ 24VDC
- Connection: Plug connector
- Special attributes: Ice-class defroster included, Dimmable (NAVY/SAR only)
- Recommended vessel size: Over 50M
- Minimum feed wire gauge: 1.5mm² (AWG18)
- Weight: 1.7 Kg / 59.96 Oz
- EAN: 5704438014510
- UPC: 879343014513
-
