SKU:
BP 301-105ST+141-B-CD
$ 5.089,76
1-2 weeks delivery time
-
+
The Lopolight 301-105ST+141-B-CD provides a 135° double white light combined with a 135° red stop light for precise visibility on large vessels. Constructed from black anodized aluminum with PMMA lenses, it operates at 10-32VDC, has an intensity greater than 15cd, and offers 3NM visibility. Certified by DNV and approved to multiple standards, it is durable and reliable for demanding maritime applications.
- Description
- Ask a Question
-

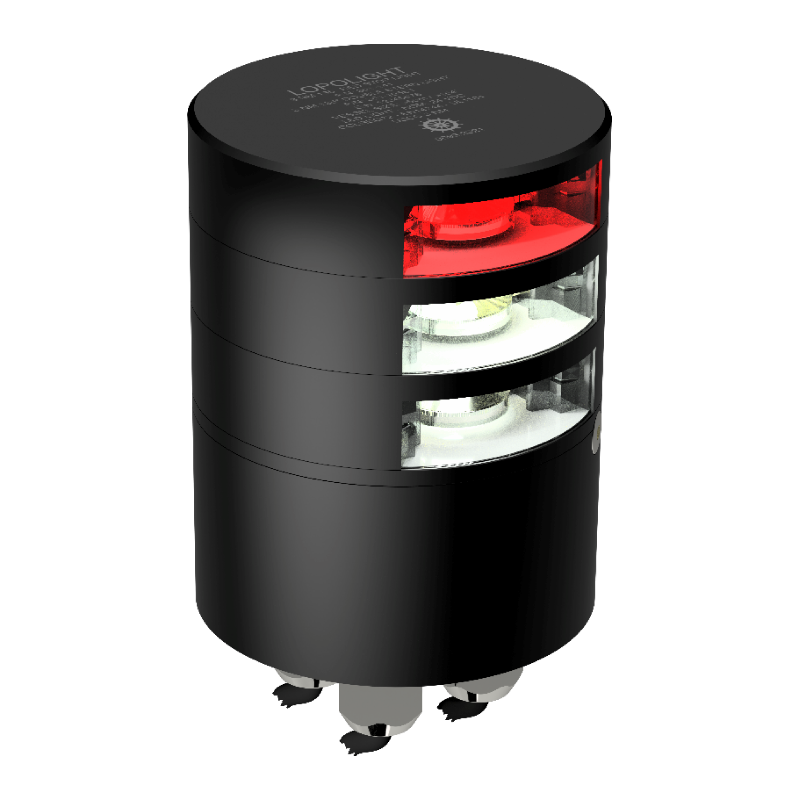

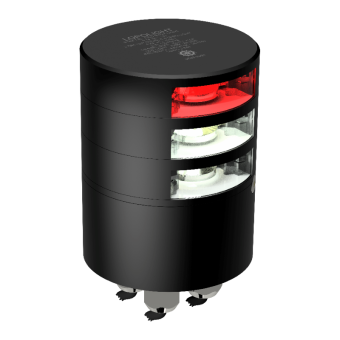

Lopolight 301-105ST+141-B-CD - Navigation Light 3NM 135° White, Double + 135° Red Stop Light, Black
Engineered for precise visibility, this Suez stop navigation light offers a 135° white double light with a matching 135° red stop light. Built with durable materials, it ensures long-lasting performance for large vessels.
- Mounting: Horizontal
- Product Number: 301-105ST+141-B-CD
- Light Color: Red, White
- Dimensions: Ø92.5mm x 118.5mm (Ø3.6" x 4.6")
- Certification: DNV
- Intensity: >15cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 3nm
- Operating Temperature: -25°C to 55°C
- Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- IP Rating: IP68
- Power Draw: 1.7 W
- Connection: Plug connector
- Current Consumption: 130 mA @ 12VDC, 72 mA @ 24VDC
- Min. Feed Wire Gauge: 0.5mm² (AWG22)
- Vessel Size: Over 50M
- Weight: 1.6 Kg / 56.43 Oz
- EAN: 5704438014589
- UPC Code: 879343014582
-
