SKU:
BP 301-101-6M
$ 1.460,44
1-2 weeks delivery time
-
+
The Lopolight 301-101-6M is a green starboard navigation light with vertical mounting and a 6-meter cable. It provides 3NM visibility, is DNV certified, consumes 2.3W, and is designed for vessels over 50 meters.
- Description
- Ask a Question
-

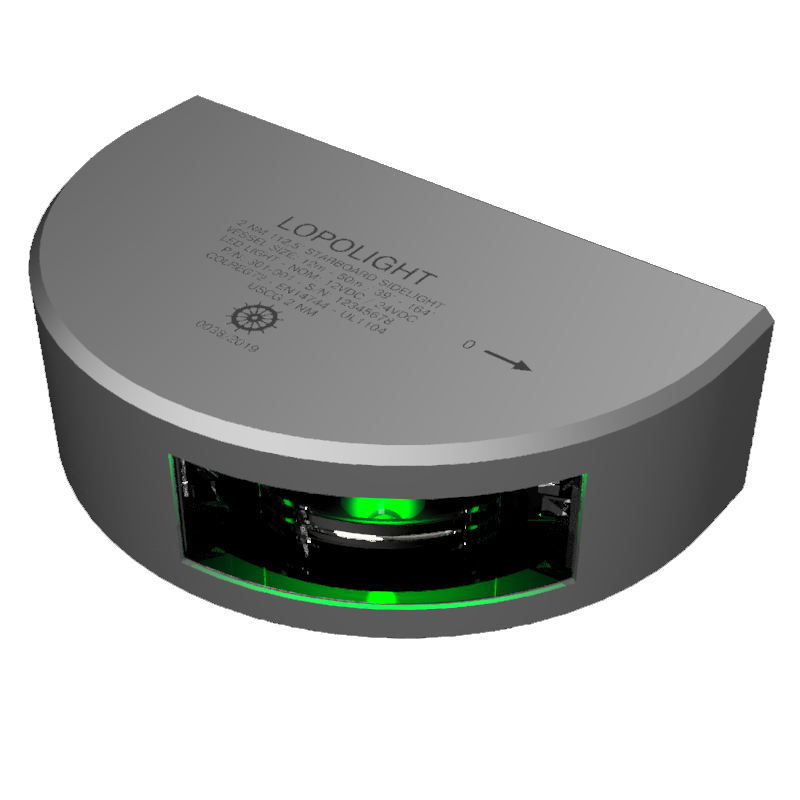

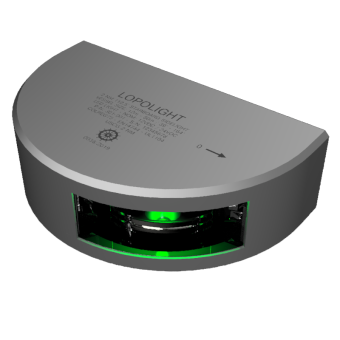

Lopolight 301-101-6M - Navigation Light 3NM 112.5° Green, Starboard, Silver Anodized
- Vertical mounting with a 6-meter cable for flexible installation options.
- Product number: 301-101-6M
- Light color: Green
- Dimensions (metric): 92.5 x 28 x 49.7 mm
- Dimensions (imperial): 3.6" x 1.1" x 1.95"
- Certified by DNV and approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., LR standards
- Light intensity: >15cd, visibility range: 3 nautical miles
- Package includes: 1 navigation light, 2 mounting screws (M6 x 8 mm), installation guide
- Operating temperature: -25°C to 55°C
- Mounting orientation: Vertical
- Construction materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
- Operating voltage: 10-32VDC
- IP rating: IP68
- Power consumption: 2.3W
- Connection: 6m cable
- Current consumption: 180mA @ 12VDC, 100mA @ 24VDC
- Recommended vessel size: over 50 meters
- Minimum feed wire gauge: 0.5mm² (AWG22)
- Weight: 0.6 kg (21.16 oz)
- EAN: 5704438013155 | UPC: 879343013158
-
