SKU:
BP 301-011KLST-PRO-I-EX
$ 6.797,58
1-2 weeks delivery time
-
+
The Lopolight 301-011KLST-PRO-I-EX is an ATEX Zone 1 & 2 certified navigation light for vessels up to 50 meters, combining ice-class defrosting and high visibility. It is horizontally mounted on an EX/MIL aluminum base, designed for hazardous environments, and operates between -25°C to 55°C. The light is IP68 rated, draws 4W, and comes with an installation guide but no cable glands.
- Description
- Ask a Question
-

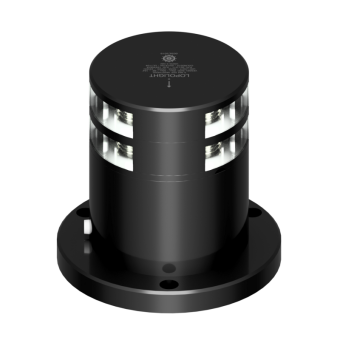

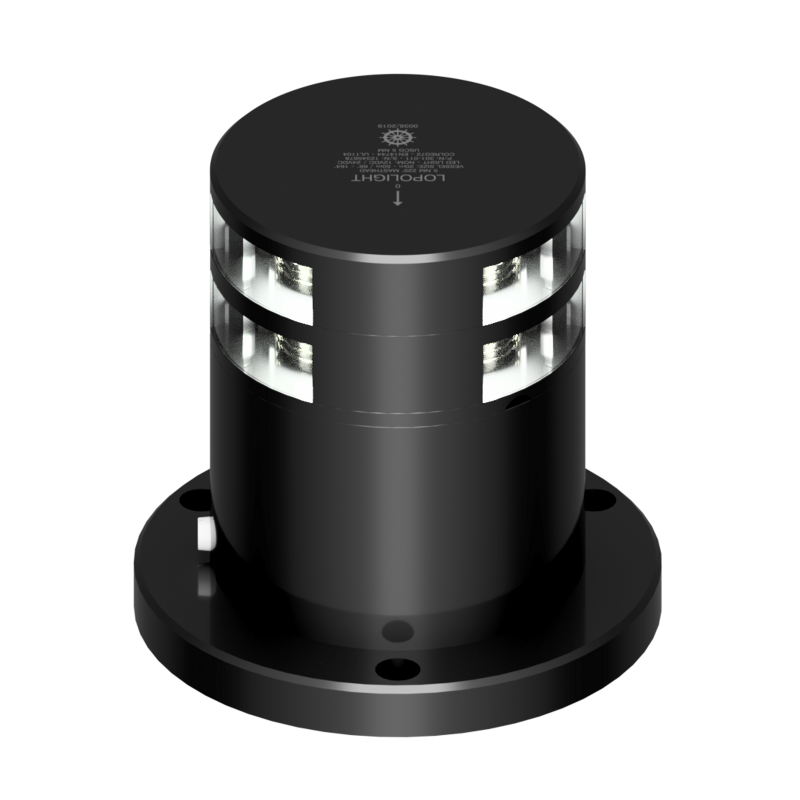

Lopolight 301-011KLST-PRO-I-EX - Navigation Light 5NM 225° Masthead, Double, Ex Zone 1&2 Ice-Class
This ATEX Zone 1 & 2 certified navigation light combines ice-class defrosting and high-visibility performance for vessels up to 50M, suitable for hazardous environments with horizontal mounting and robust materials.
- Certified for use in ATEX Zone 1 & 2
- Built-in De-icing function
- Horizontally mounted on 400-037 EX/MIL alu base
- Cable direction: side, includes HDPE base plate
- No cable glands or ground strap included
- Product number: 301-011KLST-PRO-I-EX
- Light color: White
- Dimensions (metric): Ø92,5mm x 125,5mm
- Dimensions (imperial): Ø3.6" x 4.9"
- Certification: DNV, Dancert (Approved to: Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 5NM
- Included in package: 1 navigation light, installation guide
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating voltage: 10-32VDC
- EAN: 5704438040601
- IP rating: IP68
- Power draw: 4W
- Current consumption: 320 mA @ 12VDC, 170 mA @ 24VDC
- Special attributes: Ice-class defroster included, IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Vessel size: 20-50M
- Minimum feed wire gauge: 0.5mm² (AWG22)
- Weight: 1.35 Kg / 47.61 Oz
- Connection: Plug connector
-
