SKU:
BP 301-011KLST-PRO-EX
$ 4.855,42
1-2 weeks delivery time
-
+
The Lopolight 301-011KLST-PRO-EX is an explosion-proof horizontal double masthead light certified for ATEX Zone 1 & 2, providing 225° white beam with 5NM visibility. It operates on 10–32VDC, draws 4 W, and is constructed from black anodized aluminum with PMMA lens and HDPE base plate.
- Description
- Ask a Question
-

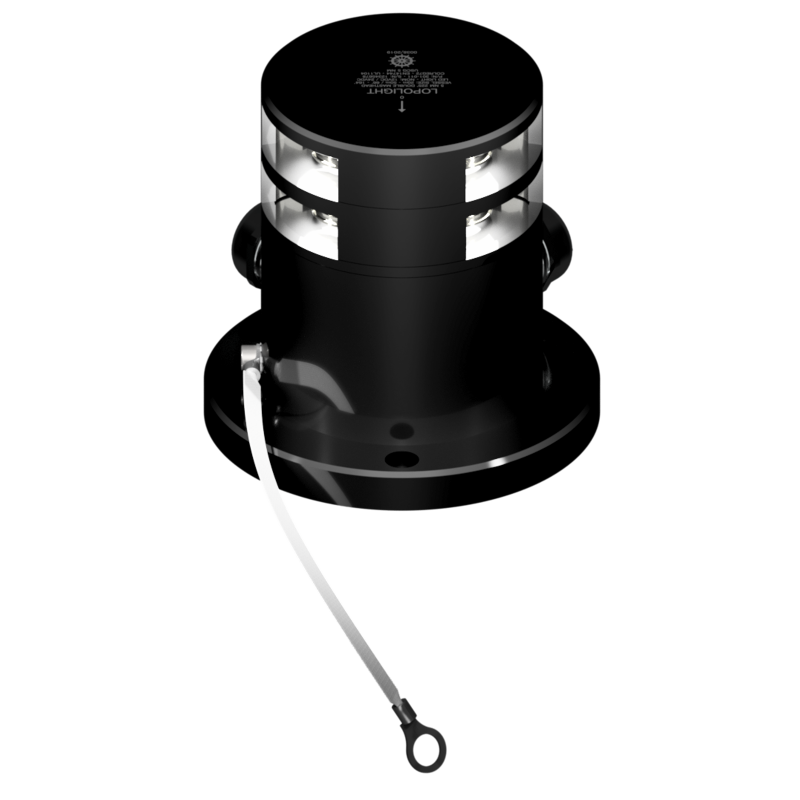

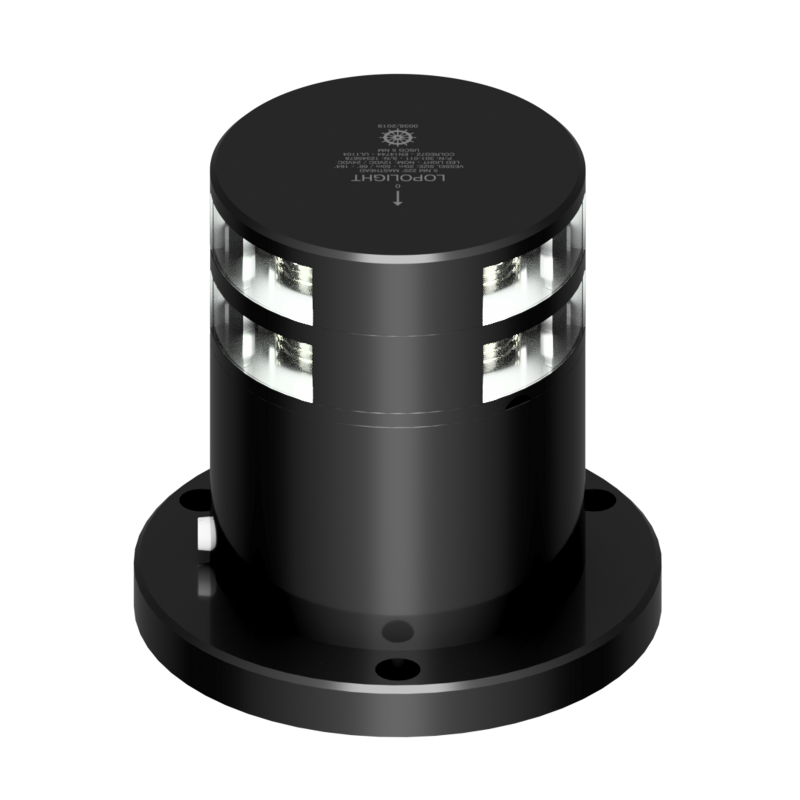

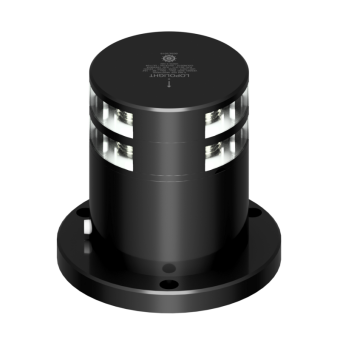

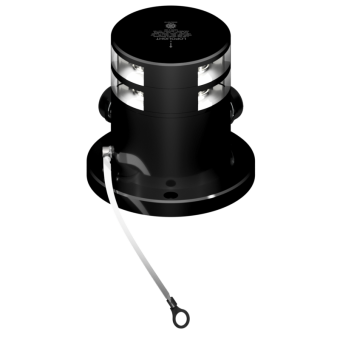

Lopolight 301-011KLST-PRO-EX - Navigation Light 5NM 225° Masthead, Double, Black Ex Zone 1&2
The Lopolight 301-011KLST-PRO-EX is a certified explosion-proof navigation light designed for hazardous areas (ATEX Zone 1 & 2). It provides reliable white light visibility up to 5 nautical miles and meets extensive safety and maritime standards.
- Certified for use in ATEX Zone 1 & 2
- Mounted horizontally on 400-037-B aluminum base (IP68)
- Cable direction: side
- Includes HDPE base plate
- No cable glands or ground strap included
- Product number: 301-011KLST-PRO-EX
- Light color: White
- Dimensions metric: Ø92,5mm x 125,5mm
- Dimensions imperial: Ø3.6" x 4.9"
- Certified by DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 5nm
- Included in package: 1 navigation light, installation guide
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating voltage: 10-32VDC
- Power draw: 4W
- EAN: 5704438038240
- UPC code: 879343038373
- Connection: Plug connector
- Current consumption @ 12VDC: 320mA
- Current consumption @ 24VDC: 170mA
- Special attributes: IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Vessel size: 20–50M
- Min. feed wire gauge: 0.5mm² AWG22
- Weight: 1.35 Kg / 47.61 Oz
-
