SKU:
BP 301-011KL-WH
$ 1.940,08
1-2 weeks delivery time
-
+
The Lopolight 301-011KL-WH is a horizontally mounted masthead navigation light with 225° white beam and 5NM visibility, designed for vessels 20–50M. It has a white ceramic-coated aluminum finish, operates on 10–32VDC, consumes 5 W, and includes mounting screws and an installation guide.
- Description
- Ask a Question
-

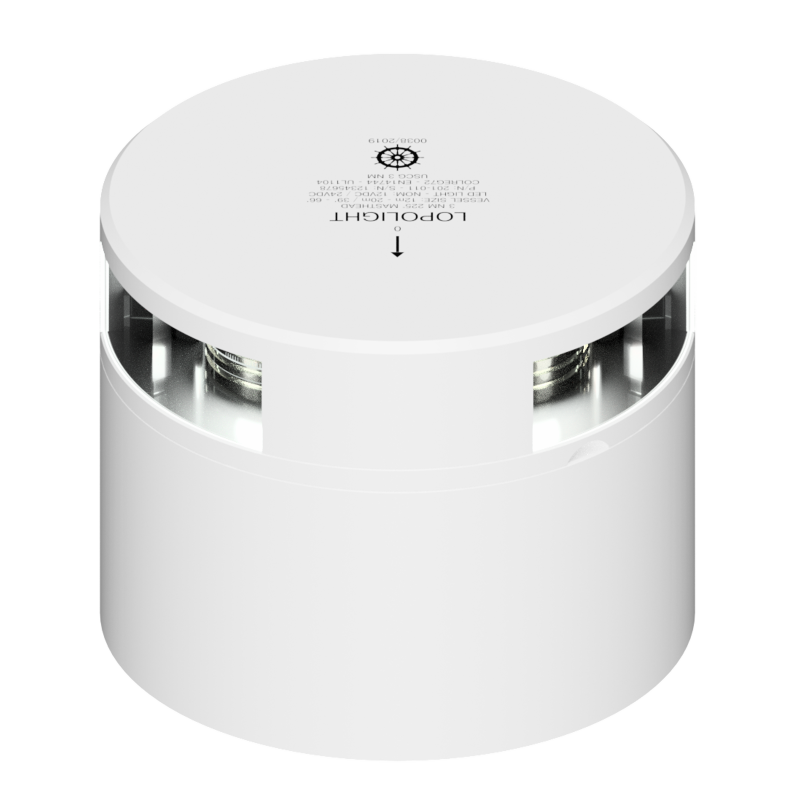

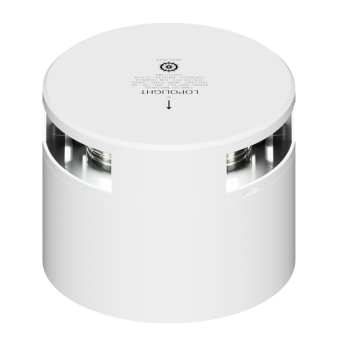

Lopolight 301-011KL-WH - Navigation Light 5NM 225° White, Masthead, White Ceramic Coated
A durable navigation light designed for vessels between 20-50 meters, featuring a white ceramic finish and strong aluminum base. It ensures high visibility, certified reliability, and efficient power use in challenging marine environments.
- Number: 301-011KL-WH
- Light Color: White
- Dimensions metric: Ø92,5mm x 74,5mm
- Dimensions imperial: Ø3.6 x 2.9
- Finish: White ceramic coating
- Mount base: Aluminium, white
- Cable: Down only
- Included standard: Black PE baseplate
- Optional: White ceramic coated baseplate
- Certification: Wheelmarked - based on certification by DNV
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 5nm
- Intensity: >15cd
- Included in package: 1 Navigation light, 2 Mounting screws (M6 * 8 mm), Installation guide
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Ceramic coated white aluminum, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- Power draw: 5W
- Current consumption (12VDC): 320mA
- Current consumption (24VDC): 170mA
- Connection: Plug connector
- Min. feed wire gauge: 0.5mm² AWG22
- IP rating: IP68
- EAN: 5704438039353
- UPC Code: 879343039486
- Vessel size: 20-50M
- Weight: 0.84 Kg / 29.63 Oz
-
