SKU:
BP 301-011KL-PRO-EX
$ 2.975,34
1-2 weeks delivery time
-
+
The Lopolight 301-011KL-PRO-EX is a robust horizontal navigation light certified for ATEX Zone 1 & 2 hazardous areas, with a 225° white beam and 5NM visibility. It operates on 10–32VDC, draws 4 W, and meets extensive international maritime and explosion-proof standards. Built from black anodized aluminum and PMMA lens, it includes a base plate and installation guide but no cable glands.
- Description
- Ask a Question
-

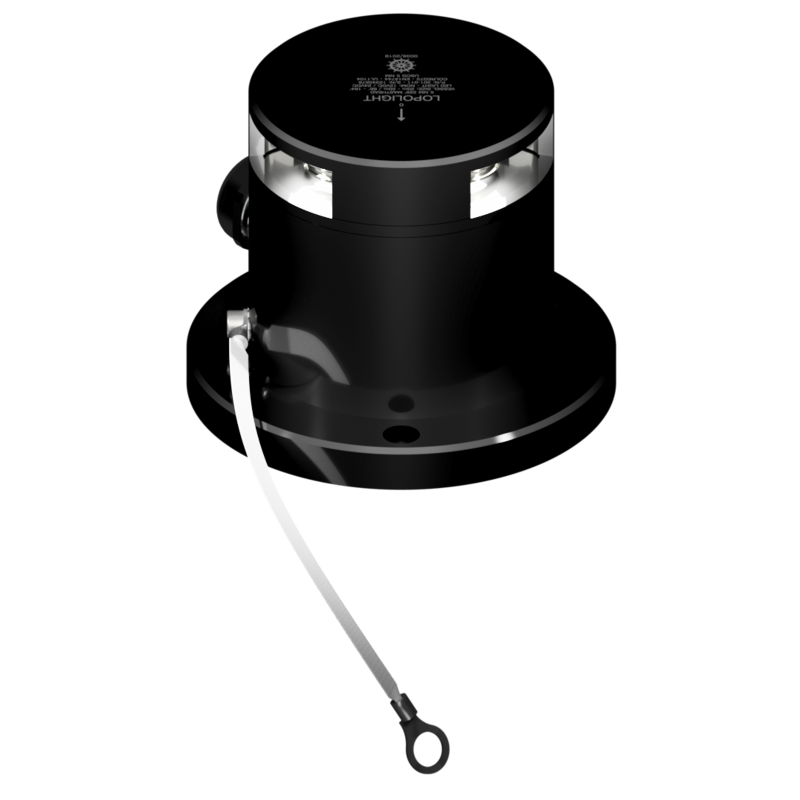

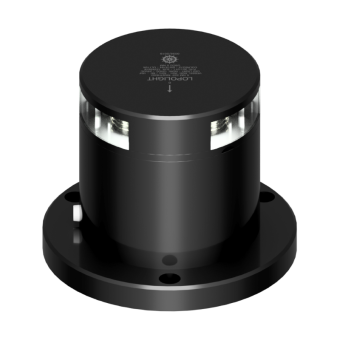

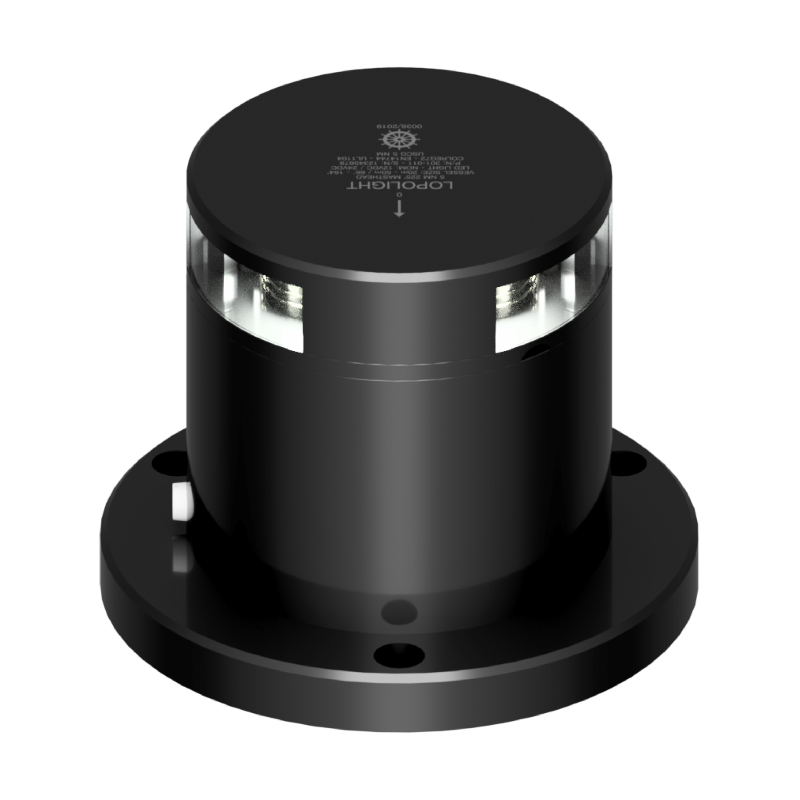

Lopolight 301-011KL-PRO-EX - Navigation Light 5NM 225° Masthead, Black Ex Zone 1&2
A robust navigation light designed for vessels operating in hazardous areas, with strong certifications and reliable performance for professional use.
- Certified for use in ATEX Zone 1 & 2
- Horizontally mounted on 400-037-B alu base (IP68)
- Cable direction side, includes HDPE base plate
- No cable glands or ground strap included
- Number: 301-011KL-PRO-EX
- Light Color: White
- Dimensions metric: Ø92,5mm x 103,5mm
- Dimensions imperial: Ø3.6" x 4"
- Certification: DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 5nm
- Included in package: 1 navigation light, installation guide
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- EAN: 5704438040502
- IP rating: IP68
- Power draw (W): 4
- UPC Code: 879343040635
- Connection: Plug connector
- Current consumption (mA @ 12VDC): 320
- Current consumption (mA @ 24VDC): 170
- Special Attributes: IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Vessel size: 20-50M
- Min. feed wire gauge: 0.5mm2 AWG22
- Weight: 1 Kg / 35.27 Oz
-
