SKU:
BP 301-011KL-B-RPM
$ 3.132,60
1-2 weeks delivery time
-
+

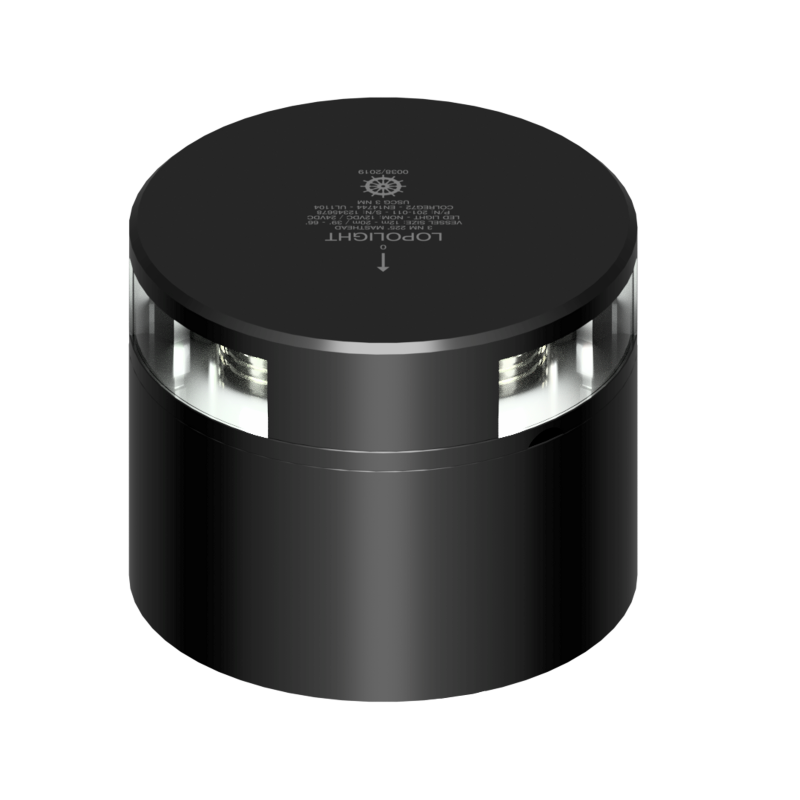

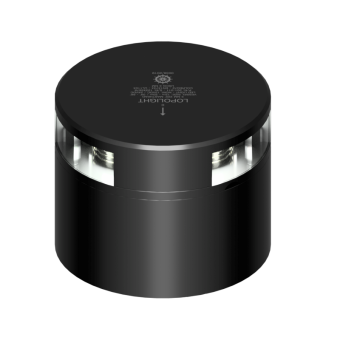

The Lopolight 301-011KL-B-RPM is a dimmable, horizontally mounted masthead navigation light with a 225° white beam and visibility range of 5NM. It operates at 24VDC, consumes 4.1 W, and is DNV approved with compliance to international maritime standards. Constructed from black anodized aluminum and PMMA lens, it is designed for vessels 20–50M and includes mounting screws and an installation guide.
- Description
- Ask a Question
-
Lopolight 301-011KL-B-RPM - Navigation Light 5NM 225° Masthead, Dimmable, Black
- Dimmable, monitored, and controllable
- 2-lead connection for power and control
- Operating voltage: 24VDC
- Product Number: 301-011KL-B-RPM
- Light color: White
- Dimensions (metric): Ø92,5mm x 74,5mm
- Dimensions (imperial): Ø3.6" x 2.9"
- Certification: DNV approved
- Intensity: >52cd
- Standards: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility range: 5nm
- Included: 1 Navigation light, 2 mounting screws (M6 * 8 mm), installation guide
- Operating temperature: -25°C to 55°C
- Mounting type: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- EAN: 5704438014701
- IP rating: IP68
- Power draw: 4,1 W
- UPC Code: 879343014704
- Connection: Plug connector
- Current consumption at 12VDC: 320 mA
- Current consumption at 24VDC: 170 mA
- Special attributes: Dimmable (NAVY/SAR only)
- Recommended vessel size: 20-50M
- Minimum feed wire gauge: 0.5mm² AWG22
- Weight: 0.99 Kg (34.92 Oz)
-
